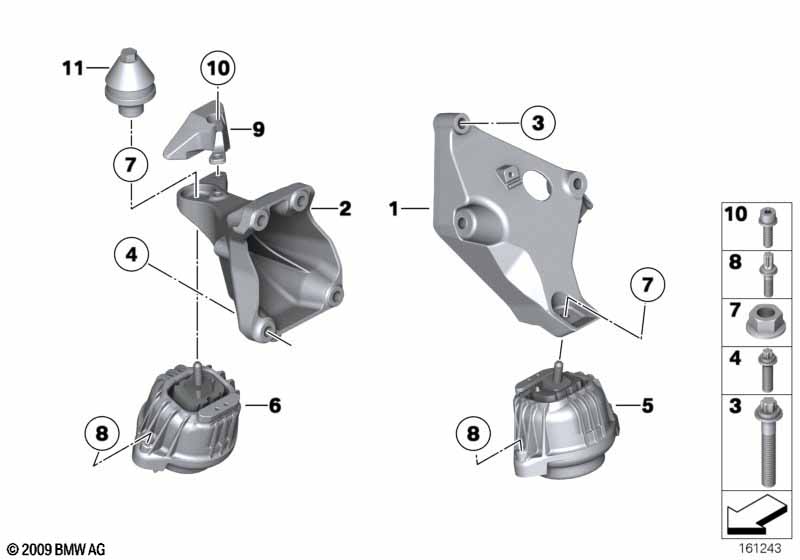

3' F30 LCI 325d Engine Suspension
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116788611 | +core | |||||
| 02 | Engine supporting bracket, right | 1 | 22116788612 | ||||||
| 03 | Star-socket screw | BM10X60-U1-8.8- | 3 | 07119908537 | |||||
| 04 | Torx screw | M10X40-Z1-10.9 | 4 | 07129903976 | $1.05 | ||||
| 05 | Engine mount, left | 1 | 22116787657 | ||||||
| Required for repair | |||||||||
| -- | Torx bolt | M8X33-8.8-ZNS3 | 3 | 31106794380 | |||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | ||||
| 06 | Engine mount, right | 1 | 22116787658 | ||||||
| Required for repair | |||||||||
| -- | Torx bolt | M8X33-8.8-ZNS3 | 3 | 31106794380 | |||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | ||||
| 07 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | ||||
| 08 | Torx bolt | M8X33-8.8-ZNS3 | 6 | 31106794380 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
