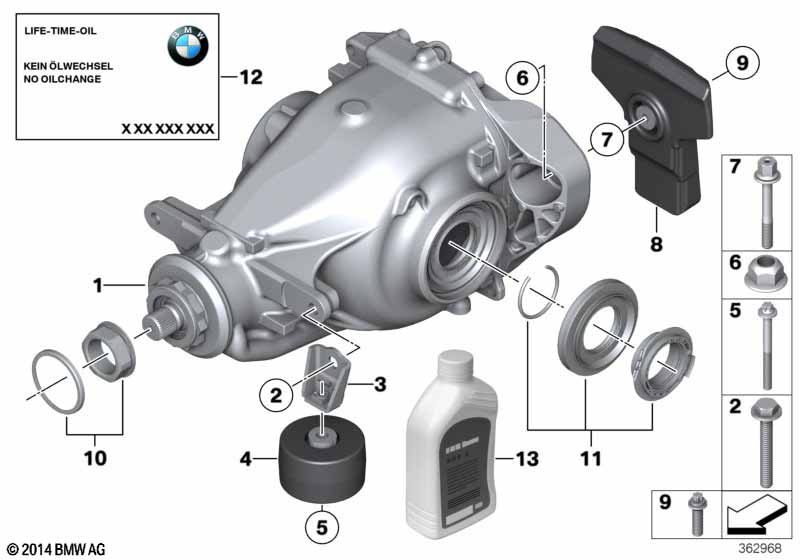

3' F30 LCI 325d Rear-axle-drive

Rear-axle-drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. final drive I=3,46 1 33107605596
only in conjunction with
-- Repair kit insert nut M39X1,5X20 1 33127607158
Note Repair Manual
For vehicles with
Automatic transmission
or
Sport automatic transmission

S205A=Yes

S2TBA=Yes
01 Exch. final drive I=2,81 1 33107603760
only in conjunction with
-- Repair kit insert nut M39X1,5X20 1 33127607158
Note Repair Manual
02 Hex bolt with washer M12X1,5X100 2 33176760343 $2.05
03 Bracket, vibration absorber 1 33176862749
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=Yes
03 Bracket, vibration absorber 1 33176865490
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=No
03 Bracket, vibration absorber 1 33176865490
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=No

S2TBA=Yes
03 Bracket, vibration absorber 1 33176865490
04 Vibration absorber 42HZ 1 33176862876
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=Yes
04 Vibration absorber 35HZ 1 33176865491
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=Yes

S2TBA=No
04 Vibration absorber 35HZ 1 33176865491
For vehicles with
Automatic transmission
and
Sport automatic transmission

S205A=No

S2TBA=Yes
04 Vibration absorber 35HZ 1 33176865491
05 Star-socket screw BM8X30-U1-10.9- 1 07119908584
06 Self-locking collar nut M14X1,5-10 ZNS3 1 33306760349 $1.33
07 Nut M14X1,5X110 1 33176799183
08 Vibration absorber 37HZ 1 33306862877
For vehicles with
Automatic transmission
or
Sport automatic transmission

S205A=Yes

S2TBA=Yes
08 Vibration absorber 40HZ 1 33316798891
09 Star-socket screw BM8X30-U1-10.9- 1 07119908584
10 Repair kit insert nut M39X1,5X20 1 33127607158
Note Repair Manual
11 Gasket set differential TYP 215/225/235 2 33107568368 $27.09
Note Repair Manual
12 Stick-on label DE, EN 1 01399791197 $4.25
13 Hypoid axle oil G1 3 X 0,5L X 07/2011 83222295532
Filling quantity, see Additional
Information
