3' F30 LCI 325d Head-up display
Sponsored links
Sponsored links

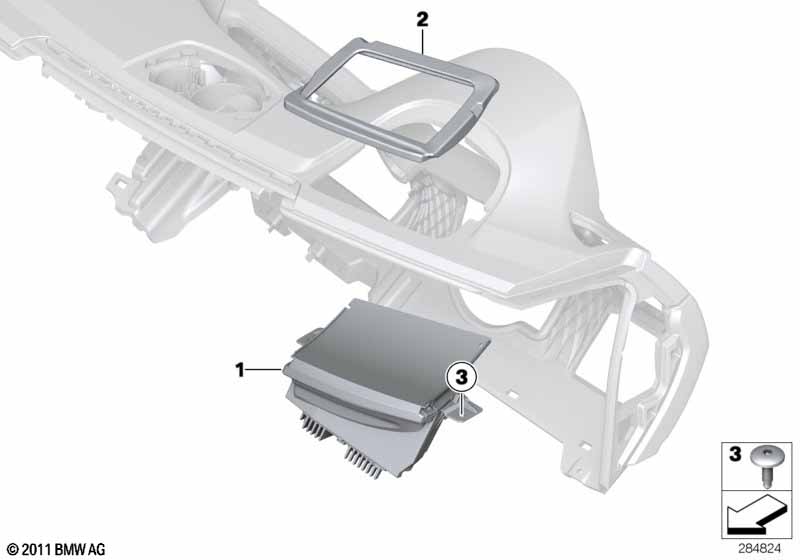

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Starting in 07/2013 new HUDs featuring modified hardware will be available. When the HUD is replaced in a vehicle with an earlier SW status than 07/2013 after 07/ 2013 then the newly installed HUD will not be operational. This fault pattern indicates a SW malfunction in the instrument cluster. Remedial action: Program instrument cluster, starting with ISTA 2.50.0. For vehicles with Head-up display |
S610A=Yes |
|||||||
| 01 | Head-up display | LHD | 1 | 03/2016 | 62309358960 | ENDED | |||
| 01 | Head-up display | LHD | 1 | 03/2017 | 62306819695 | ENDED | |||
| 01 | Head-up display | LHD | 1 | 03/2018 | 62306820852 | ENDED | |||
| 01 | Head-up display | LHD | 1 | 62309865042 | |||||
| 02 | Sound insulation, head-up display | LHD | 1 | 62309236820 | |||||
| 03 | Combi oval-head machine screw | 3 | 11119143167 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
