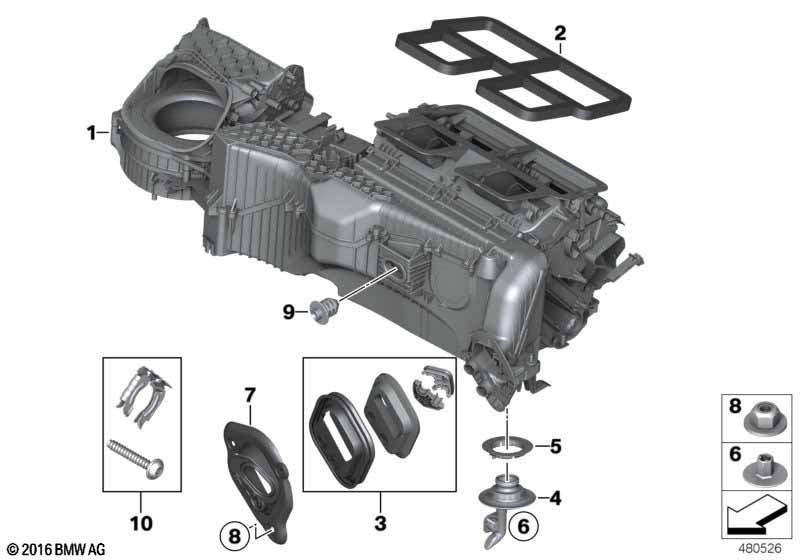

3' F30 LCI 325d Housing parts - air conditioning
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater/air condit.unit | 1 | 64119238642 | ||||||
| only in conjunction with | |||||||||
| -- | Set, noise insulation, heater | LHD | 1 | 51487343531 | |||||
| only applies to Auxiliary heater |
|||||||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
||||||||
| 01 | Empty housing f heater/air condit.unit | 1 | 64119238644 | ||||||
| only in conjunction with | |||||||||
| -- | Set, noise insulation, heater | LHD | 1 | 51487343531 | |||||
| only applies to Auxiliary heater |
|||||||||
| 02 | Gasket, ventilation | 1 | 64119237553 | ||||||
| 03 | Set of gaskets | 1 | 64119237646 | ||||||
| 04 | Condensation water outlet hose | 1 | 07/2018 | 64119207092 | ENDED | ||||
| 04 | Condensation water outlet hose | 1 | 07/2018 | 64119301572 | |||||
| 05 | Supporting ring | 1 | 07/2018 | 64119231072 | |||||
| 05 | Retaining ring for condensate drain | 1 | 07/2018 | 64119301573 | |||||
| 06 | Clip nut | 5X15 D=30 SW10 | 1 | 07147139081 | $0.20 | ||||
| 07 | Sealing plate, air conditioning | 1 | 64119207093 | ||||||
| 08 | Self-locking hex nut | M6 | 3 | 64509123157 | $0.70 | ||||
| 09 | Bush | 1 | 64119145230 | ||||||
| 10 | Set of parts Heater/Air condit. housing | 1 | 64119237643 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
