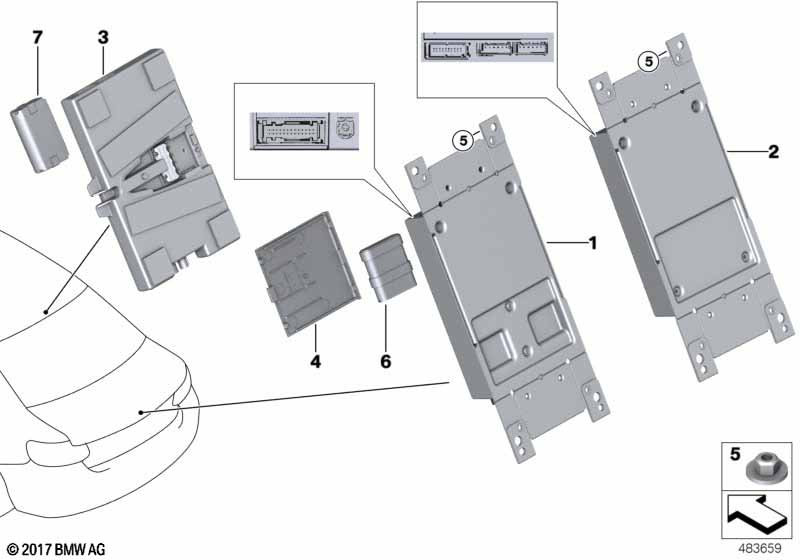

3' F30 LCI 325d Telematics control unit
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! Order and installation of an encoded telematics control unit will deactivate the currently installed SIM map. ConnectedDrive and Teleservice services can then only be implemented with the new control unit. The ordered control unit does not operate in any other vehicle, only this one! See PuMA measure 62720112 For vehicles with Country control for Brazil 00464 |
S8LBA=Yes |
|||||||
| For vehicles with TV function and Navigation system Professional and Teleservices and Country control for Brazil 00464 |
S601A=No S609A=No S6AEA=Yes S8LBA=Yes |
||||||||
| 01 | Telematics control unit | TCB BR GPS | 1 | 07/2016 | 07/2017 | 84109362852 | |||
| For vehicles with TV function and Navigation system Professional and Teleservices and Control for Infotainment and Country control for Brazil 00464 and Country control for HongKong 04142 and Providersteuerung Telematik |
S601A=No S609A=No S6AEA=Yes S6VBA=No S8LBA=Yes S8LHA=No S8SXA=No |
||||||||
| 01 | Telematics control unit | TCB BR GPS | 1 | 07/2015 | 07/2016 | 84109362852 | |||
| For vehicles with Teleservices and Country control for Brazil 00464 |
S6AEA=Yes S8LBA=Yes |
||||||||
| 03 | Telematics control unit | ATM BR 3G | 1 | 03/2017 | 07/2017 | 84106836762 | |||
| For vehicles with TV function and Navigation system Professional and Teleservices and Country control for Brazil 00464 |
S601A=Yes S609A=Yes S6AEA=Yes S8LBA=Yes |
||||||||
| 03 | Telematics control unit | ATM BR 3G | 1 | 07/2015 | 03/2017 | 84106836762 | |||
| For vehicles with TV function and Navigation system Professional and Teleservices and Country control for Brazil 00464 |
S601A=Yes S609A=No S6AEA=Yes S8LBA=Yes |
||||||||
| 03 | Telematics control unit | ATM BR 3G | 1 | 07/2015 | 03/2017 | 84106836762 | |||
| For vehicles with TV function and Navigation system Professional and Teleservices and Country control for Brazil 00464 |
S601A=No S609A=Yes S6AEA=Yes S8LBA=Yes |
||||||||
| 03 | Telematics control unit | ATM BR 3G | 1 | 07/2015 | 03/2017 | 84106836762 | |||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
||||||||
| 04 | Cover, control unit | TCB | 1 | 84109267244 | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
||||||||
| 04 | Cover, control unit | TCB | 1 | 84109267244 | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
||||||||
| 04 | Cover, control unit | TCB | 1 | 84109267244 | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
||||||||
| 05 | Hex nut | M5 | 4 | 07129906048 | $0.73 | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
||||||||
| 05 | Hex nut | M5 | 4 | 07129906048 | $0.73 | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
||||||||
| 05 | Hex nut | M5 | 4 | 07129906048 | $0.73 | ||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for trunk |
S6AEA=Yes S6AFA=Yes |
||||||||
| 06 | Battery | 4,8V 440MAH | 1 | 84109297787 | |||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for trunk |
S6AEA=Yes S6AFA=No |
||||||||
| 06 | Battery | 4,8V 440MAH | 1 | 84109297787 | |||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for trunk |
S6AEA=No S6AFA=Yes |
||||||||
| 06 | Battery | 4,8V 440MAH | 1 | 84109297787 | |||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for roof |
S6AEA=Yes S6AFA=Yes |
||||||||
| 07 | Battery | ATM | 1 | 84102447710 | |||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for roof |
S6AEA=Yes S6AFA=No |
||||||||
| 07 | Battery | ATM | 1 | 84102447710 | |||||
| For vehicles with Teleservices and Statutory emergency request Telematics control unit for roof |
S6AEA=No S6AFA=Yes |
||||||||
| 07 | Battery | ATM | 1 | 84102447710 | |||||
