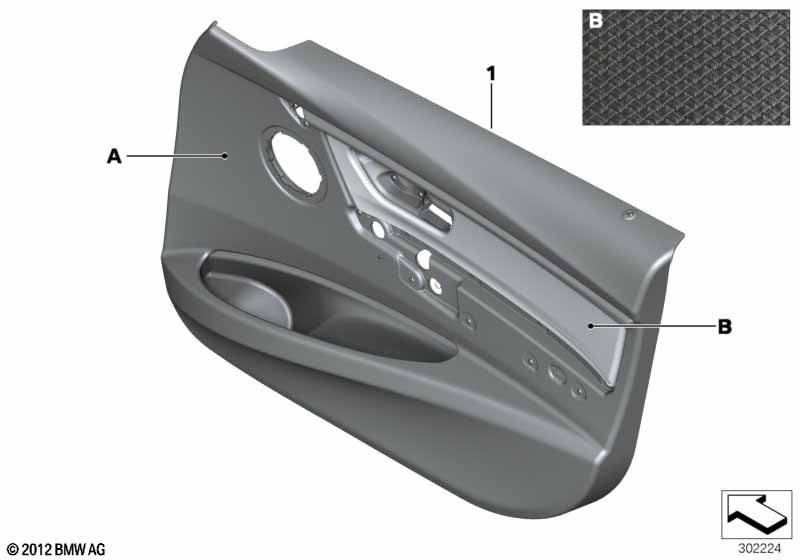

3' F30 LCI 325d Indiv.door trim panel, front leather
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Specification, door trim panel in black or oyster - (B) Part number, braided leather merino finegrain SRT --------------------------- |
||||||||
| For vehicles with 19" LA wheel Y-spoke 511 M.Sport |
S1XTA=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 07/2012 | 51417985105 | NoS | |||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 07/2012 | 51417985106 | NoS | |||
| For vehicles with 19" LA wheel Y-spoke 511 M.Sport and Light package |
S1XTA=No S563A=Yes |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 07/2012 | 51417985107 | NoS | |||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 07/2012 | 51417985108 | NoS | |||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=Yes P7ACA=Yes P7S2A=Yes S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=Yes P7ACA=Yes P7S2A=No S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=Yes P7ACA=No P7S2A=Yes S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=Yes P7ACA=No P7S2A=No S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=No P7ACA=Yes P7S2A=Yes S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=No P7ACA=Yes P7S2A=No S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | ||||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and 19" LA wheel Y-spoke 511 M.Sport and Light package |
P337A=No P7ACA=No P7S2A=Yes S1XTA=No S563A=No |
||||||||
| 01 | Door panel, leather, front left | INDIVIDUAL | 1 | 09/2015 | 51417990775 | NoS | |||
| 01 | Door lining leather front right | INDIVIDUAL | 1 | 09/2015 | 51417990776 | NoS | |||
Notes
- NoS = No Stock (Part, central, not in stock.)
