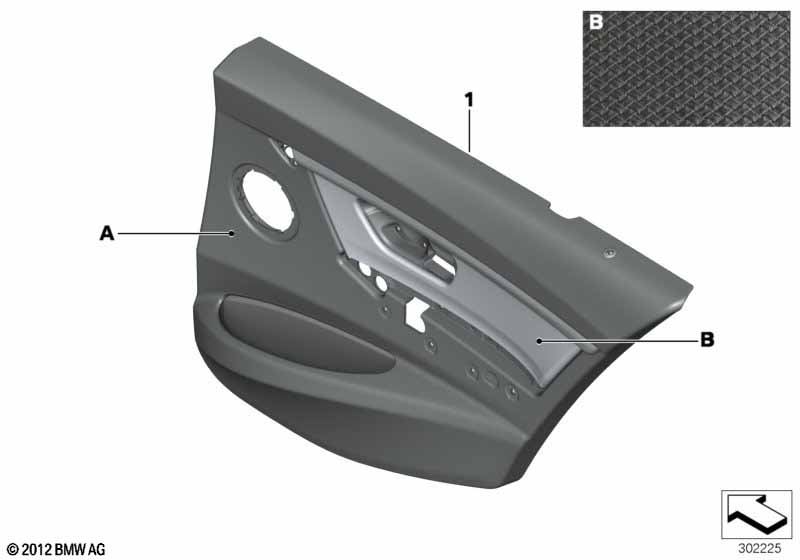

3' F30 LCI 325d Indiv. door trim panel, leather rear
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Specification, door trim panel in black or oyster - (B) Part number, braided leather merino finegrain SRT --------------------------- For vehicles with Indi. I-panel with leather cover and special trim (without colour statement) or Indi. leather, extended/kaschmir-beige or Indi. leather, extended/kaschmir-beige or Indi. leather extended/opal-weiss or Indi. leather extended/opal-weiss or Indi. leather, extended/amaro-braun or Indi. leather extended/black or Indi. leather extended/black or Indi. leather expanded /"cohiba" |
SXT1A=No Z1XX=Yes ZAKO=Yes ZAKS=Yes ZAOO=Yes ZAOW=Yes ZAP5=Yes ZASM=Yes ZASW=Yes ZAWT=Yes |
|||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 07/2012 | 51427985121 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 07/2012 | 51427985122 | NoS | |||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427985125 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427985126 | NoS | |||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 07/2012 | 51427985129 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 07/2012 | 51427985130 | NoS | |||
| For vehicles with Light package |
S563A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 07/2012 | 51427985123 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 07/2012 | 51427985124 | NoS | |||
| For vehicles with Light package and Harman/Kardon Surround Sound system |
S563A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427985127 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427985128 | NoS | |||
| For vehicles with Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427985133 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427985134 | NoS | |||
| For vehicles with Roller sun vizor, rear door and Light package |
S417A=Yes S563A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 07/2012 | 51427985131 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 07/2012 | 51427985132 | NoS | |||
| For vehicles with M Sports package or Sport Line or Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990777 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990778 | NoS | |||
| For vehicles with Roller sun vizor, rear door and Light package and Harman/Kardon Surround Sound system |
S417A=Yes S563A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427985135 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427985136 | NoS | |||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=Yes P7S2A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=Yes P7S2A=No S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=No P7S2A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=No P7S2A=No S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=No P7ACA=Yes P7S2A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=No P7ACA=Yes P7S2A=No S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Harman/Kardon Surround Sound system |
P337A=No P7ACA=No P7S2A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990779 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990780 | NoS | |||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=Yes P7ACA=Yes P7S2A=Yes S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=Yes P7ACA=Yes P7S2A=No S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=Yes P7ACA=No P7S2A=Yes S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=Yes P7ACA=No P7S2A=No S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=No P7ACA=Yes P7S2A=Yes S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=No P7ACA=Yes P7S2A=No S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door |
P337A=No P7ACA=No P7S2A=Yes S417A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990781 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990782 | NoS | |||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=Yes P7S2A=Yes S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=Yes P7S2A=No S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=No P7S2A=Yes S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=Yes P7ACA=No P7S2A=No S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=No P7ACA=Yes P7S2A=Yes S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=No P7ACA=Yes P7S2A=No S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | ||||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Roller sun vizor, rear door and Harman/Kardon Surround Sound system |
P337A=No P7ACA=No P7S2A=Yes S417A=Yes S688A=Yes |
||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2015 | 51427990783 | NoS | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2015 | 51427990784 | NoS | |||
Notes
- NoS = No Stock (Part, central, not in stock.)
