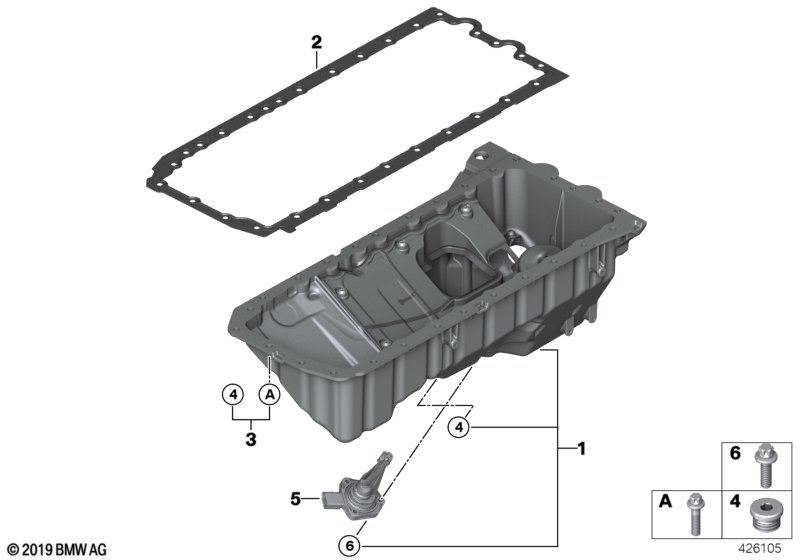

3' F80 M3 LCI M3 Oil Pan
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||
| 01 | Oil Pan | 1 | 09/2014 | 11137854463 | |||||
| Required for repair | |||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 09/2014 | 83190404517 | $23.40 | |||
| 02 | Profile-gasket | 1 | 09/2014 | 11137600482 | |||||
| Required for repair | |||||||||
| -- | Set of aluminium screws oil pan | 1 | 09/2014 | 11132210959 | |||||
| -- | Torx screw | M8X36-AL | 1 | 09/2014 | 11137559537 | $1.65 | |||
| -- | Torx screw | M8X50-AL | 1 | 09/2014 | 11137582340 | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
| 03 | Set of aluminium screws oil pan | 1 | 09/2014 | 11137853940 | |||||
| 04 | Screw Plug With Gasket Ring | M16X1.5AL | 1 | 09/2014 | 11117849396 | ||||
| 05 | Oil levelling sensor | 1 | 09/2014 | 12618608780 | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
|||||||||
| 06 | ASA screw in aluminum | M6X30 | 3 | 09/2014 | 12617849253 | ||||
