3' F80 M3 LCI M3 Intake muffler/Filter cartridge/HFM

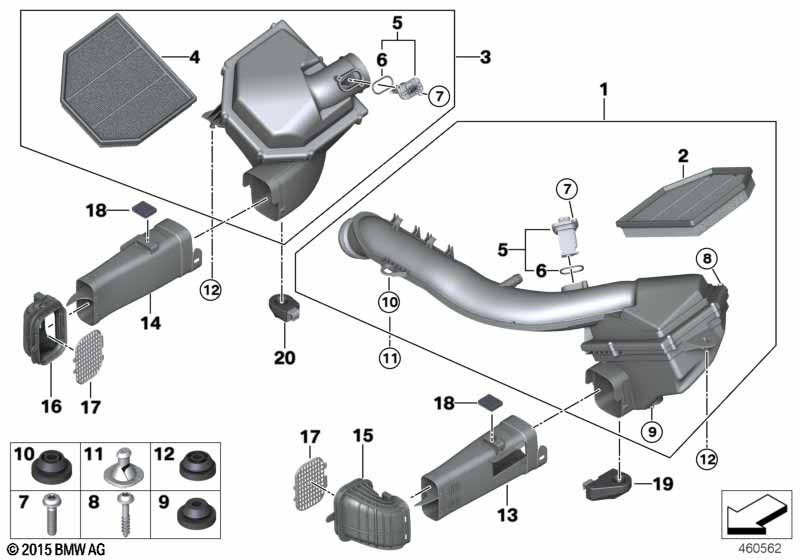

Intake muffler/Filter cartridge/HFM
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler left 1 13717846269
02 Air filter element for cylinder bank 1 1 13727843284
03 Intake muffler right 1 13717846268
04 Air filter element for cylinder bank 2 1 13727843283
05 Hot-film air mass meter 2 13627602038 +core
06 O-ring 30,5X3,15 2 13627630589
07 Screw 4X16 4 07129907551
08 Fillister head screw 14 13717545438 $1.54
09 Bump stop 1 13717542860 $3.41
10 Bump stop 1 13717625238
11 Support 1 13718507322
12 Rubber buffer 5 13717571356 $3.41
13 Intake duct, left 1 13717846267
14 Intake duct, right 1 13717846265
15 Air channel 1 13717613157
16 Intake manifold, front 1 13717613156
17 Intake grill 2 13718507321
18 Rubber Mounting 2 13718573147
19 Support bottom 1 51748062549
20 Support bottom 1 51748062536
Notes
  • +core = plus core charge (possibility of a return of the old part)
