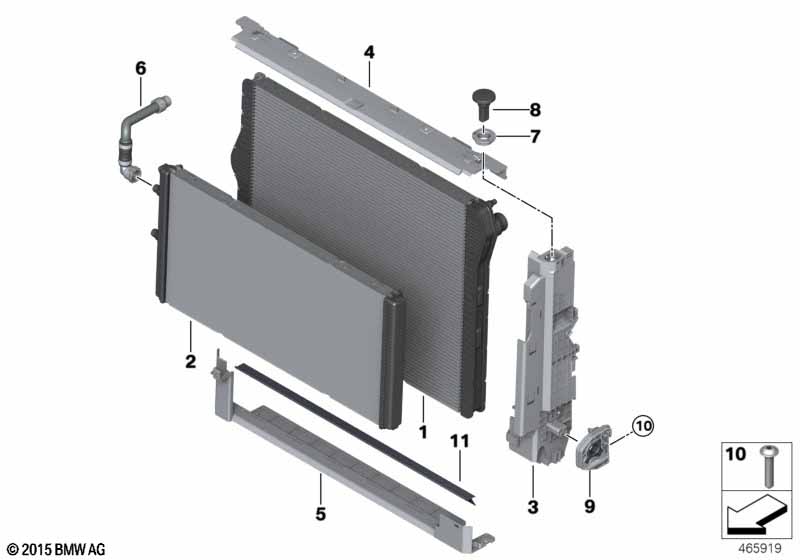

3' F80 M3 LCI M3 Coolant radiator mounting hardware

Coolant radiator mounting hardware
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Radiator 1 17112284607
02 Radiator 1 17112284608
03 Module mount, left 1 17117848786
03 Module mount, right 1 17117848787
04 Module carrier, upper 1 17117848788
05 Module mount, bottom 1 17117848789
06 Line, low-temperature radiator- 1 17117848791
07 Support sleeve 2 17117596923
08 Bracket upper 2 17117596922
09 Bracket for module, left 1 17118620732
09 Bracket for module, right 1 17118620733
10 Fillister head screw M6X30 2 17117596108
11 Seal, cooling module 1 17117848790
