3' F80 M3 LCI M3 Clutch control

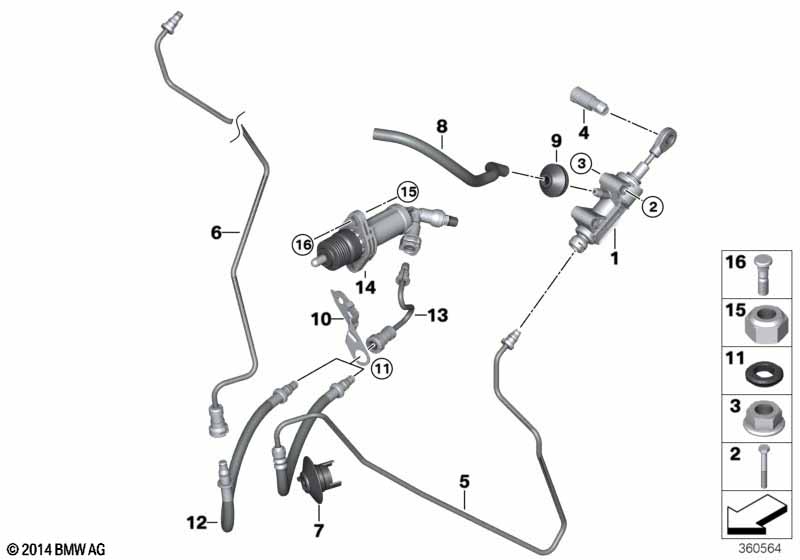

Clutch control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M double-clutch transmiss. w/Drivelogic

S2MKA=No
01 Input cylinder clutch 1 21526773670 $141.70
02 Hex bolt M6X45 8.8 ZNS3 2 07119902976 $0.45
03 Hex nut M6-8-ZNNIV SI 2 07129905817
04 Pin, master cylinder 1 08/2018 35316854283
04 Pin, master cylinder 1 35006878304
06 Pipe RHD 1 21526864481
07 Grommet 1 21521163894 $1.72
08 Hose 7,5X13 X 21521163714 $8.75
09 Grommet 1 21526771100 $1.37
10 Bracket, clutch line 1 21526765063 $1.02
11 Grommet 1 21521164603 $2.93
12 Pressure hose assy 1 21526869285
13 Connecting line 1 21526864478
14 Clutch slave cylinder D=22,20MM 1 21526795713
15 Self-locking hex nut M8-8-ZNNI SI 2 04/2015 07129906196 $1.60
16 Knurled bolt 2 04/2015 21511203012 $2.18
16 Hex bolt M8X25 8.8 ZNS3 2 07119907207
