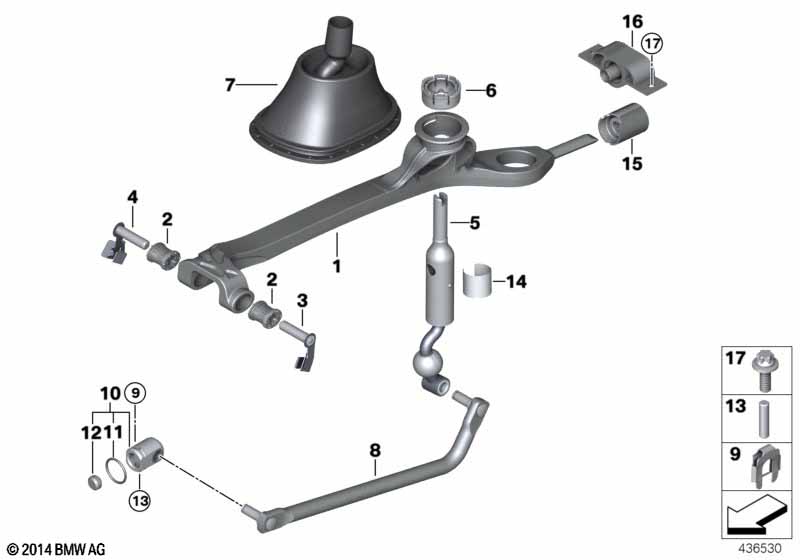

3' F80 M3 LCI M3 Gearshift manual transmission

Gearshift manual transmission
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M double-clutch transmiss. w/Drivelogic

S2MKA=No
01 Shifting arm 1 25112284597
02 Bush bearing oval L=26MM/SCHWARZ 2 25117507695 $2.93
03 Bolt 1 25117529078 $5.23
04 Bolt 1 25117529079 $5.23
05 Shift lever 1 25112284894
06 Bearing, shift lever 1 25111220600 $10.33
07 Rubber boot 1 25117596026 +core
08 Selector rod 1 25112284598
09 Securing clip 2 25117571899 $0.66
10 Gearshift rod joint 1 25117580281 $15.10
11 Lock Ring 1 25111222451 $0.33
12 Plastic washer 1 25111434194 $0.85
13 Dowel pin 1 23411466134 $0.70
14 Label for shift lever 1 25117619206
16 Bearing, shifting arm 1 25118614288
17 Star-socket screw M6X16-8.8-ZNS3 2 07119907242
Notes
  • +core = plus core charge (possibility of a return of the old part)
