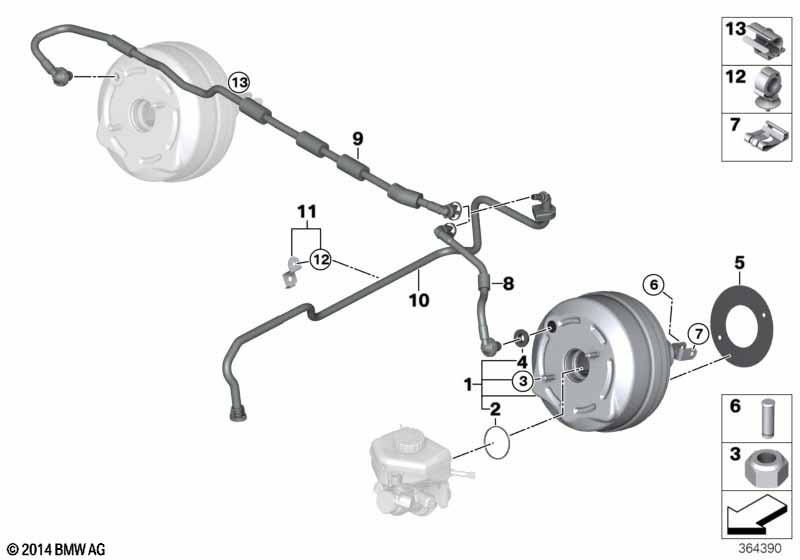

3' F80 M3 LCI M3 Brake servo unit

Brake servo unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
M Carbon ceramic brake

S2NKA=Yes
01 Brake servo unit 1 34337850999
only in conjunction with
-- Seal, brake booster 1 34336857618
-- Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
For vehicles with
M Carbon ceramic brake

S2NKA=No
01 Brake servo unit 1 34337849876
only in conjunction with
-- Seal, brake booster 1 34336857618
-- Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
02 Brake master cylinder o-ring 1 34336799317
03 Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
04 Gasket 1 34336799318
05 Seal, brake booster 1 34336857618
06 Brake pedal pin D=10X29,5 1 34336753646 $1.67
07 Fuse B10-ZNS3 1 07129904567 $0.40
09 Vacuum pipe with non-return valve 1 11667850596
10 Vacuum pipe 1 11667850594
11 Holder 1 11667591538
12 Wire holder, two-place 1 13311714453 $0.28
13 Clip 1 11667644877
