3' F80 M3 LCI M3 Parking brake / brake shoes

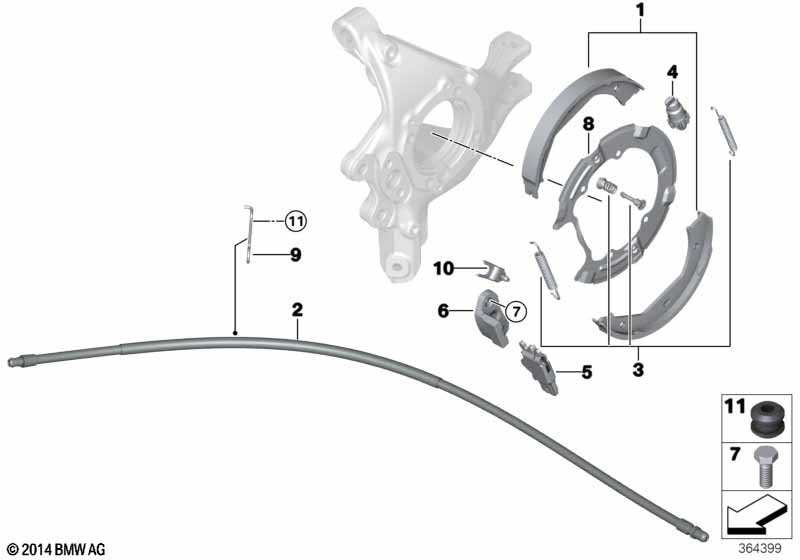

Parking brake / brake shoes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit brake shoe asbestos-free 1 34416761292 $92.33
02 Hand brake bowden cable 2 34402284879
03 Repair kit springs 1 34410410825 $25.37
04 Adjusting screw 2 34416851437
05 Expanding lock 2 34416851439
06 Support 2 34416759700 $17.07
07 Hex bolt M10X30 10.9 ZNS 4 34417847983
08 Supporting ring brake shoe D=185MM 2 34212284747
09 Hand brake bowden cable bracket 2 34416769077 $1.27
10 Spring clip 2 34406851831 +core
11 Grommet 2 34401165291 $0.57
Notes
  • +core = plus core charge (possibility of a return of the old part)
