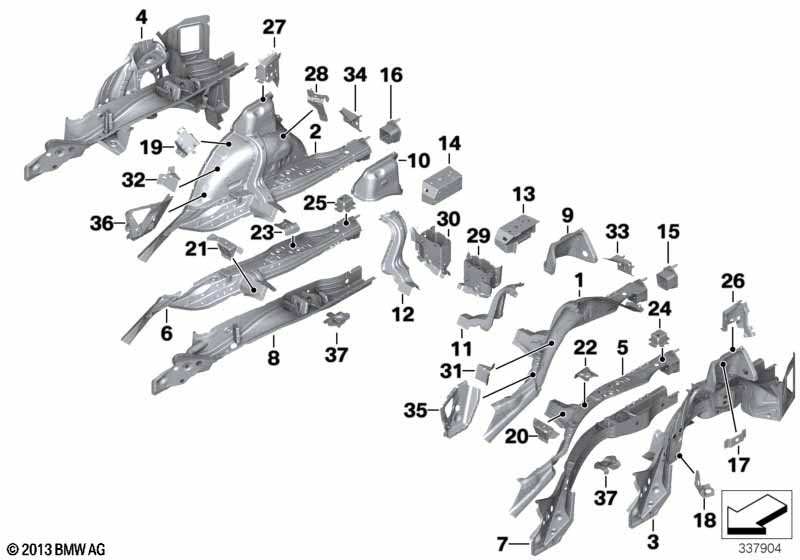

3' F80 M3 LCI M3 Rear wheelhouse/floor parts
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear left wheelhouse, inner half | 1 | 41007297873 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for trunk brace, lower | 1 | 41008063217 | ||||||
| 02 | Rear right wheelhouse, inner half | 1 | 41007297874 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for trunk brace, lower | 1 | 41008063217 | ||||||
| 03 | Support structure, left | 1 | 41007297865 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for NSD, lateral | 1 | 41118045828 | $11.30 | |||||
| 04 | Support structure, right | 1 | 41007297866 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for NSD, lateral | 1 | 41118045828 | $11.30 | |||||
| 05 | Side member, top left | 1 | 41117298089 | ||||||
| 06 | Side member, top right | 1 | 41117298090 | ||||||
| 07 | Side member, lower left | 1 | 41007297859 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for NSD, lateral | 1 | 41118045828 | $11.30 | |||||
| 08 | Side member, lower right | 1 | 41007297860 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for NSD, lateral | 1 | 41118045828 | $11.30 | |||||
| 09 | Support, wheelhouse left | 1 | 41007284323 | ||||||
| 10 | Support, wheelhouse right | 1 | 41007284324 | ||||||
| 11 | Support, wheelhouse left | 1 | 41007284307 | ||||||
| 12 | Support, wheelhouse right | 1 | 41007284308 | ||||||
| 13 | Support belt reel, left | 1 | 41007297875 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for trunk brace, upper left | 1 | 41008063219 | NoS | |||||
| 14 | Support belt reel, right | 1 | 41007297876 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket for trunk brace, upper right | 1 | 41008063220 | NoS | |||||
| 15 | Mount, bumper left | 1 | 12/2014 | 41004866803 | ENDED, NoS | ||||
| 15 | Mount, bumper left | 1 | 41007227919 | ||||||
| 16 | Mount, bumper right | 1 | 41107227920 | ||||||
| 17 | Bracket DWA | 1 | 41007284325 | ||||||
| 18 | Holder, brake hose, left | 1 | 41007284347 | ||||||
| 18 | Holder, brake hose, right | 1 | 41007284348 | ||||||
| 19 | Braket fuel pump | 1 | 41117284326 | ||||||
| 37 | Rear silencer bracket | 2 | 41007386388 | ||||||
Notes
- NoS = No Stock (Part, central, not in stock.)
- ENDED = the part has been discontinued (no longer available).
