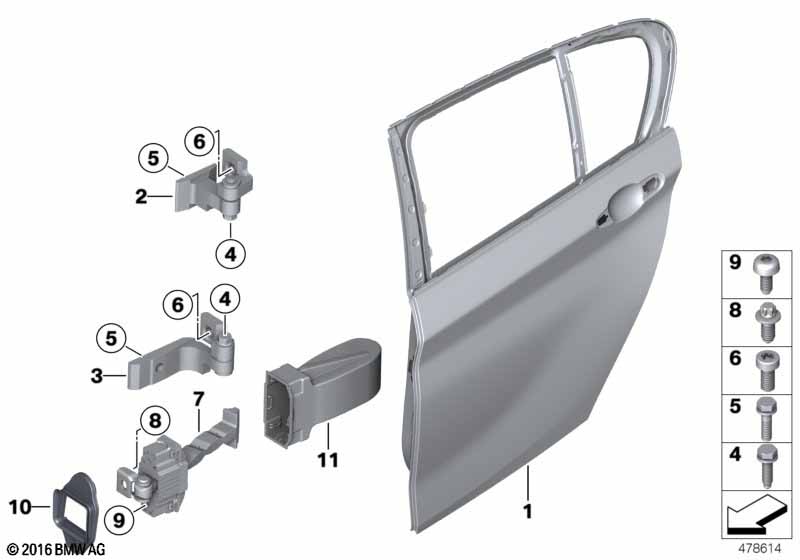

3' F80 M3 LCI M3 Rear door - hinge/door brake
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41007298513 | ||||||
| 01 | Door rear right | 1 | 41007298514 | ||||||
| 02 | Left upper rear door hinge | 1 | 41527284545 | +core | |||||
| 02 | Right upper rear door hinge | 1 | 41527284546 | +core | |||||
| 03 | Left lower rear door hinge | 1 | 41527284543 | +core | |||||
| 03 | Right lower rear door hinge | 1 | 41527284544 | +core | |||||
| 04 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | |||||
| 05 | Hexagon screw with taper | M12X39 | 4 | 01/2018 | 07147184165 | $1.55 | |||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 06 | Torx-countersunk head screw | ISA M10X28 | 4 | 07147266068 | |||||
| 07 | Rear door brake | 1 | 06/2016 | 51227311340 | ENDED | ||||
| 07 | Door brake, rear left | 1 | 51227446729 | ||||||
| 07 | Door brake, rear right | 1 | 51227446730 | ||||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | ||||
| 09 | Torx-bolt with washer | ISA M6X12 | 4 | 51226976687 | $0.59 | ||||
| 10 | Left rear door brake gasket | 1 | 51767263989 | ||||||
| 10 | Right rear door brake gasket | 1 | 51767263990 |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
