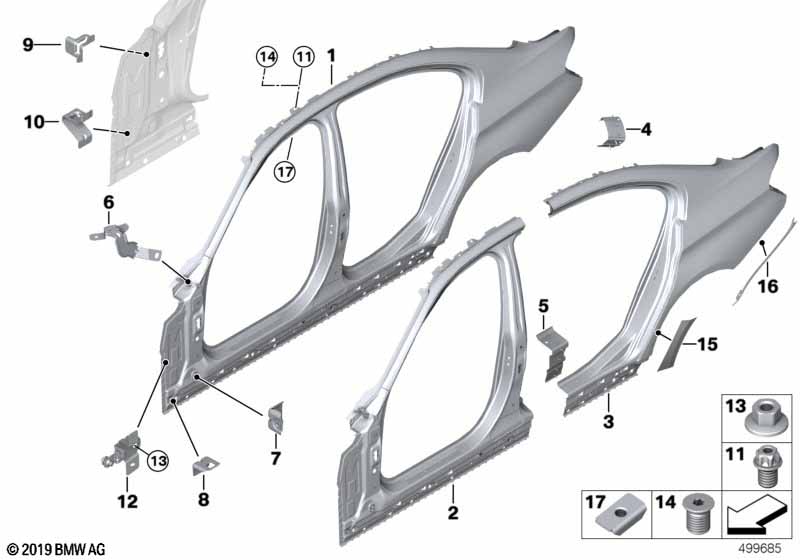

3' F80 M3 LCI M3 Body-side frame
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41218060235 | ||||||
| only in conjunction with | |||||||||
| -- | Left supporting strut reinforcement | 1 | 41008063225 | ||||||
| Required for repair | |||||||||
| -- | Blind plug | D=15MM | 2 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | Left protection foil | 1 | 51128064441 | ||||||
| -- | Protective film, wheel arch, outer left | 1 | 51148067019 | ||||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | |||||
| 01 | Side frame, exterior, right | 1 | 41218060236 | ||||||
| only in conjunction with | |||||||||
| -- | Right supporting strut reinforcement | 1 | 41008063226 | ||||||
| Required for repair | |||||||||
| -- | Blind plug | D=15MM | 2 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | Right protection foil | 1 | 51128064442 | ||||||
| -- | Protective film, wheel arch, outer rgt | 1 | 51148067020 | ||||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | |||||
| 02 | Left exterior column A | 1 | 41007298165 | ||||||
| only in conjunction with | |||||||||
| -- | Left supporting strut reinforcement | 1 | 41008063225 | ||||||
| Required for repair | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| 02 | Column A exterior right | 1 | 41007298166 | ||||||
| only in conjunction with | |||||||||
| -- | Right supporting strut reinforcement | 1 | 41008063226 | ||||||
| Required for repair | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| Performed using adhesive bonding/ riveting repair method. |
|||||||||
| 03 | Left rear side panel | 1 | 41008060247 | ||||||
| only in conjunction with | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Blind rivet N1 | 1 | 83190301414 | $1.98 | |||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | ||||
| -- | Body adhesive K5 | 195 ML | 1 | 83192157298 | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Punch rivet N4 | 39 | 83192457307 | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41217298191 | ||||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41217298207 | ||||||
| -- | Left protection foil | 1 | 51128064441 | ||||||
| -- | Protective film, wheel arch, outer left | 1 | 51148067019 | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| 03 | Right rear side panel | 1 | 41008060248 | ||||||
| only in conjunction with | |||||||||
| -- | Blind plug | D=15MM | 1 | 07147127540 | $0.26 | ||||
| Required for repair | |||||||||
| -- | Blind rivet N1 | 1 | 83190301414 | $1.98 | |||||
| -- | Blind rivet N3 | 12 | 83190301421 | $0.31 | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | ||||
| -- | Body adhesive K5 | 195 ML | 1 | 83192157298 | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Punch rivet N4 | 39 | 83192457307 | ||||||
| -- | Positioning aid T-bolt | 1 | 41212460145 | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41217298192 | ||||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41217298208 | ||||||
| -- | Right protection foil | 1 | 51128064442 | ||||||
| -- | Protective film, wheel arch, outer rgt | 1 | 51148067020 | ||||||
| -- | T-welding stud | L=5,4MM | 10 | 41318412638 | |||||
| 04 | Reinforcement plate, C-pillar, left | 1 | 41217298191 | ||||||
| 04 | Reinforcement plate, C-pillar, right | 1 | 41217298192 | ||||||
| 05 | Reinforcement plate, rocker panel, left | 1 | 41217298207 | ||||||
| 05 | Reinforcement plate, rocker panel, right | 1 | 41217298208 | ||||||
| 06 | Bracket, side panel, top left | 1 | 41217298015 | ||||||
| 06 | Bracket, side panel, top right | 1 | 41217298016 | ||||||
| 07 | Bracket, side panel, bottom | 2 | 41217284401 | ||||||
| 08 | Bracket, side panel column A | 2 | 01/2025 | 41117174365 | $1.85 | ||||
| Required for repair | |||||||||
| -- | Blind rivet N3 | 4 | 01/2025 | 83190301421 | $0.31 | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 01/2025 | 83192158654 | ||||
| -- | Cleaner R1 | 100ML | 2 | 01/2025 | 83192211217 | EBA 2446652 | |||
| 09 | Bracket, wash water container top | 1 | 41007284406 | ||||||
| 10 | Holder, washer fluid reservoir, lower | 1 | 41007284407 | ||||||
| For vehicles with Glass roof, electrical Mounting for Roof rack system |
S403A=Yes |
||||||||
| 11 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | ||||
| For vehicles with Glass roof, electrical |
S403A=No |
||||||||
| 14 | Threaded plug | ISA M10 | 4 | 07148065005 | |||||
| 15 | Protective film, wheel arch, outer left | 1 | 51148067019 | ||||||
| 15 | Protective film, wheel arch, outer rgt | 1 | 51148067020 | ||||||
| 16 | Left protection foil | 1 | 51128064441 | ||||||
| 16 | Right protection foil | 1 | 51128064442 | ||||||
Notes
- EBA = Einbauanleitung (Installation instructions)
