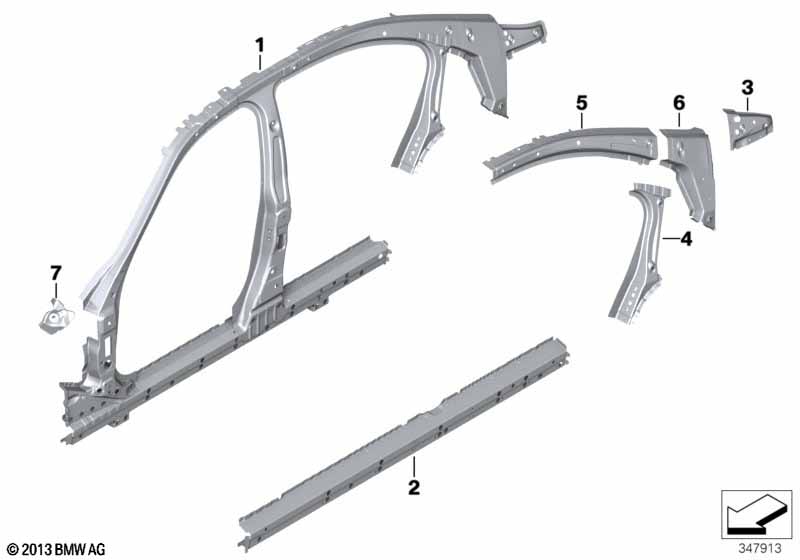

3' F80 M3 LCI M3 Side frame section, center
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 07/2015 | 41217297963 | ENDED, NoS | ||||
| only in conjunction with | |||||||||
| -- | Bracket, front brace, left | 1 | 07/2015 | 41008063227 | |||||
| 01 | Side frame, center right | 1 | 07/2015 | 41217297964 | ENDED, NoS | ||||
| only in conjunction with | |||||||||
| -- | Bracket, front brace, right | 1 | 07/2015 | 41008063228 | |||||
| 01 | Side frame, center left | 1 | 41007427481 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket, front brace, left | 1 | 41008063227 | ||||||
| Required for repair | |||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 01 | Side frame, center right | 1 | 41007427482 | ||||||
| only in conjunction with | |||||||||
| -- | Bracket, front brace, right | 1 | 41008063228 | ||||||
| Required for repair | |||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 02 | Reinforcement, entry, left | 1 | 41217297977 | ||||||
| 02 | Reinforcement, entry, right | 1 | 41217297978 | ||||||
| 03 | Tension band column C, left | 1 | 41217297997 | ||||||
| 03 | Tension band column C, right | 1 | 41217297998 | ||||||
| 04 | C-pillar support, left | 1 | 41217298003 | ||||||
| only in conjunction with | |||||||||
| 04 | C-pillar support, right | 1 | 41217298004 | ||||||
| only in conjunction with | |||||||||
| -- | Threaded plate, striker | M8 | 1 | 41007356503 | |||||
| 05 | Reinforcement, interior roof frame, left | 1 | 41217298007 | ||||||
| 05 | Reinforcement, interior roof frame,right | 1 | 41217298008 | ||||||
| 06 | C-pillar reinforcement, left | 1 | 41217298001 | ||||||
| 06 | C-pillar reinforcement, right | 1 | 41217298002 | ||||||
| 07 | Bracket, front brace, left | 1 | 41008063227 | ||||||
| 07 | Bracket, front brace, right | 1 | 41008063228 | NoS | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
