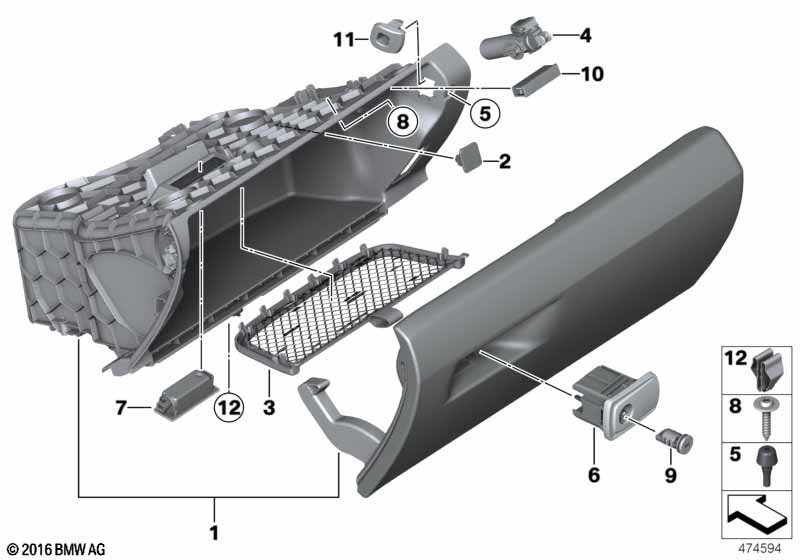

3' F80 M3 LCI M3 Glove box
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with All-leather "Merino/sakhir-orange" |
X3DA=Yes |
||||||||
| 01 | Glove box, leather | SCHWARZ/ORANGE | 1 | 51168057550 | |||||
| For vehicles with All leather "Merino/silverstone 2" |
X3A9=Yes |
||||||||
| 01 | Glove box, leather | SCHWARZ/GRAU | 1 | 51168057549 | |||||
| For vehicles with Full leather Merino/black |
X3SW=Yes |
||||||||
| 01 | Glove box, leather | SCHWARZ | 1 | 51168057548 | |||||
| For vehicles with Full leather Merino/sonoma-beige |
X3JR=Yes |
||||||||
| 01 | Glove box, leather | SCHWARZ/BEIGE | 1 | 51168057551 | NoS | ||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=No |
||||||||
| 01 | Glove box | SCHWARZ | 1 | 51169241147 | |||||
| 02 | Dummy cover for USB | 1 | 51169143943 | $2.50 | |||||
| 03 | Storage net for glove compartment | 1 | 51169248396 | ||||||
| 04 | Glove box damper | 1 | 51169227250 | +core | |||||
| 05 | Rubber buffer | 2 | 51168244385 | $1.13 | |||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=Yes |
||||||||
| 06 | Glove compartment opener, chrome locking | SCHWARZ | 1 | 51169290976 | |||||
| only in conjunction with | |||||||||
| -- | Rep.kit f lock cylinder | 1 | 51219282398 | ||||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=No |
||||||||
| 06 | Glove compartment opener, chrome locking | SCHWARZ | 1 | 51169290976 | |||||
| only in conjunction with | |||||||||
| -- | Rep.kit f lock cylinder | 1 | 51219282398 | ||||||
| For vehicles with Individual leather-covered dashboard and oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark or oyster/schwarz |
S4M5A=No DH=Yes L9=Yes OM=Yes OP=Yes |
||||||||
| 06 | Glove compartment opener, chrome locking | OYSTER | 1 | 51169290977 | |||||
| only in conjunction with | |||||||||
| -- | Rep.kit f lock cylinder | 1 | 51219282398 | ||||||
| 07 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | ||||
| 08 | Fillister head screw | 4X20 | 5 | 07149240740 | |||||
| 08 | Screw for thermoplastic plastics | M5X20MM ZNFE SW | 1 | 51162755697 | $0.41 | ||||
| 09 | Rep.kit f lock cylinder | 1 | 51219282398 | ||||||
| The lock barrel can be encoded with the supplied retainers and retainer springs. |
|||||||||
| 10 | Dummy cover for hotel position switch | 1 | 51167143413 | $0.65 | |||||
| For vehicles with 100% Leather merino |
X3=Yes |
||||||||
| 11 | Lock insert | M | 2 | 51168065381 | |||||
| Corresponds to 9 226 049, but bush with larger diameter and downward movement |
|||||||||
| 11 | Lock insert | M | 2 | 51168065380 | |||||
| Corresponds to 9 226 049, but bush with larger diameter and upward movement |
|||||||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=Yes |
||||||||
| 11 | Lock insert | 2 | 51169226049 | ||||||
| 11 | Lock insert | M | 2 | 51168065381 | |||||
| Corresponds to 9 226 049, but bush with larger diameter and downward movement |
|||||||||
| 11 | Lock insert | M | 2 | 51168065380 | |||||
| Corresponds to 9 226 049, but bush with larger diameter and upward movement |
|||||||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=No |
||||||||
| 11 | Lock insert | 2 | 51169226049 | ||||||
| 12 | Clamp | 1 | 07147321144 | ||||||
Notes
- NoS = No Stock (Part, central, not in stock.)
- +core = plus core charge (possibility of a return of the old part)
