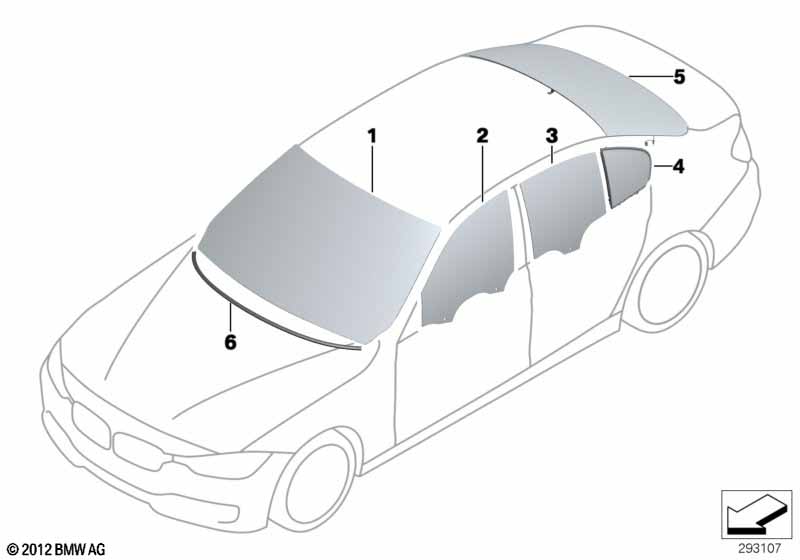

3' F80 M3 LCI M3 Glazing
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Instructions for removing RLS, see Repair manual 51 31 011 |
||||||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=Yes S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=Yes S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=No S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=Yes S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=Yes S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=No S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=Yes S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=Yes S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=No S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=Yes S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=Yes S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S5ADA=No S5ASA=No S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=Yes S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=Yes S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=No S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=Yes S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=Yes S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=No S610A=Yes S8THA=Yes |
||||||||
| 01 | Windshield, green, rain sensor / HUD | KAFAS / RLSBS | 1 | 51317258072 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=Yes S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=Yes S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=No S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=Yes S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=Yes S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Lane departure warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S5ADA=No S5ASA=No S610A=No S8THA=Yes |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258069 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=No S534A=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | 1 | 51317258064 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=No S534A=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | 1 | 51317258064 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317296894 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=Yes S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=No S3APA=No S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Windshield, green, rain/light/fog | 1 | 51317258063 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=No S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=Yes S8THA=No |
||||||||
| 01 | Windshield, green, rain sensor / HUD | RLSBS | 1 | 51317258066 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=No S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=No S534A=Yes S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=No S534A=Yes S5ADA=No S5AGA=No S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning and Lane departure warning and Lane-change warning and Driving Assistant and Head-up display and Road sign detection |
L8AAA=Yes S3APA=Yes S521A=No S534A=No S5ADA=No S5AGA=Yes S5ASA=No S610A=No S8THA=No |
||||||||
| 01 | Green windshield, grey schade band | RLSBS | 1 | 51317258065 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| 01 | Green windshield | 1 | 51317258057 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| 01 | Green windshield | 1 | 51317258055 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| 01 | Green windshield | 1 | 51317258057 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| 01 | Green windshield | 1 | 51317258055 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| Required for repair | |||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | EBA 2446652 | ||||
| -- | Cover, windshield, top | 1 | 51317258053 | ||||||
| -- | Drip moulding, left | 1 | 51317258187 | ||||||
| -- | Drip molding, right | 1 | 51317258188 | ||||||
| -- | Bump stop | 11 | 51317288462 | ||||||
| -- | Clamp | 2 | 51437321215 | ||||||
| -- | Sound insulation f apron | L=1430MM | 1 | 51487325890 | |||||
| For vehicles with National version China |
L8AAA=No |
||||||||
| 02 | Door window, front left | 1 | 51337259825 | ||||||
| 02 | Door window, front right | 1 | 51337259826 | ||||||
| For vehicles with National version China |
L8AAA=Yes |
||||||||
| 02 | Door window, front left | 1 | 51332458071 | ||||||
| 02 | Door window, front right | 1 | 51332458072 | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
||||||||
| 03 | Door window, rear left | SSG | 1 | 51357259821 | |||||
| 03 | Door window, rear right | SSG | 1 | 51357259822 | |||||
| For vehicles with National version China |
L8AAA=No |
||||||||
| 03 | Door window, rear left | 1 | 51357259819 | ||||||
| 03 | Door window, rear right | 1 | 51357259820 | ||||||
| For vehicles with National version China |
L8AAA=Yes |
||||||||
| 03 | Door window, rear left | 1 | 51352458073 | ||||||
| 03 | Door window, rear right | 1 | 51352458074 | ||||||
| 04 | Side window, rigid, rear left | 1 | 51357269553 | ||||||
| Important notice on standardization! The window supplied as a replacement part is equipped with more plugs than the original and also differs in appearance. Reason: Only the top-level version is now being supplied. Any plugs that will not be used on the individual vehicle must be tied back out of the way. |
|||||||||
| 04 | Side window, rigid, rear right | 1 | 51357269554 | ||||||
| Important notice on standardization! The window supplied as a replacement part is equipped with more plugs than the original and also differs in appearance. Reason: Only the top-level version is now being supplied. Any plugs that will not be used on the individual vehicle must be tied back out of the way. |
|||||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
||||||||
| 04 | Side window, rigid, rear left | SSG | 1 | 51357269557 | |||||
| Important notice on standardization! The window supplied as a replacement part is equipped with more plugs than the original and also differs in appearance. Reason: Only the top-level version is now being supplied. Any plugs that will not be used on the individual vehicle must be tied back out of the way. |
|||||||||
| 04 | Side window, rigid, rear right | SSG | 1 | 51357269558 | |||||
| Important notice on standardization! The window supplied as a replacement part is equipped with more plugs than the original and also differs in appearance. Reason: Only the top-level version is now being supplied. Any plugs that will not be used on the individual vehicle must be tied back out of the way. |
|||||||||
| For vehicles with National version China |
L8AAA=No |
||||||||
| 05 | Rear window | 1 | 51317258074 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China |
L8AAA=Yes |
||||||||
| 05 | Rear window | 1 | 51317258074 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| 05 | Rear window | 1 | 51317296899 | ||||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
||||||||
| 05 | Rear window | SSG | 1 | 51317258175 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
||||||||
| 05 | Rear window | SSG | 1 | 51317258175 | |||||
| only in conjunction with | |||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | |||||
Notes
- EBA = Einbauanleitung (Installation instructions)
Sponsored links
Sponsored links
Copyright © RealOEM.com
