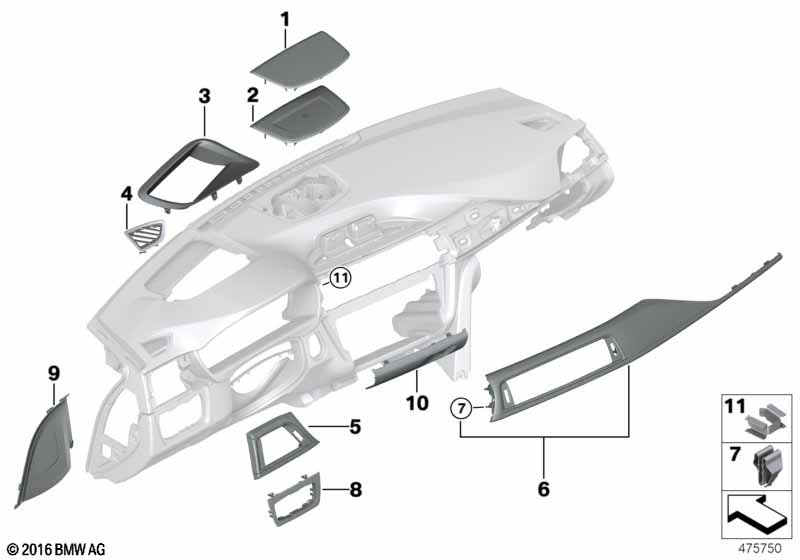

3' F80 M3 LCI M3 Mounting parts, I-panel, top
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=Yes S688A=No |
||||||||
| 01 | Cover, center speaker | SCHWARZ | 1 | 07/2015 | 51459381043 | ||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and oyster/oyster or oyster/Akzent oyster dark |
S676A=Yes S688A=No DH=Yes L9=Yes |
||||||||
| 01 | Cover, center speaker | OYSTER DUNKEL | 1 | 07/2015 | 51459381044 | ||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=Yes |
||||||||
| 02 | Cover, center speaker | SCHWARZ | 1 | 07/2015 | 51459381045 | ||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and oyster/oyster or oyster/Akzent oyster dark |
S676A=No S688A=Yes DH=Yes L9=Yes |
||||||||
| 02 | Cover, center speaker | OYSTER DUNKEL | 1 | 07/2015 | 51459381046 | ||||
| For vehicles with Head-up display |
S610A=Yes |
||||||||
| 03 | Trim piece for head-up display | SCHWARZ | 1 | 51459240366 | +core | ||||
| For vehicles with Head-up display and oyster/oyster or oyster/Akzent oyster dark |
S610A=Yes DH=Yes L9=Yes |
||||||||
| 03 | Trim piece for head-up display | OYSTER DUNKEL | 1 | 51459241177 | +core, NoS | ||||
| 04 | Cover, side window defroster, right | SCHWARZ | 1 | 51459241141 | |||||
| 04 | Cover, side window defroster, left | SCHWARZ | 1 | 51459241145 | |||||
| For vehicles with oyster/oyster or oyster/Akzent oyster dark |
DH=Yes L9=Yes |
||||||||
| 04 | Cover, side window defroster, right | OYSTER DUNKEL | 1 | 51459241142 | NoS | ||||
| 04 | Cover, side window defroster, left | OYSTER DUNKEL | 1 | 51459241146 | NoS | ||||
| For vehicles with Blue Shadow accent black high gloss |
S4WHA=Yes |
||||||||
| 05 | Cover pan.f.dashboard blue Shadow driver | SCHWARZ GLANZ | 1 | 07/2015 | 51458068612 | NoS | |||
| For vehicles with Al blade accent black chrome |
S4WKA=Yes |
||||||||
| 05 | Cover panel f.dashboard Al Blade driver | SCHWARZCHROM | 1 | 07/2015 | 51458068616 | NoS | |||
| For vehicles with Carbon fiber accent black chrome |
S4WLA=Yes |
||||||||
| 05 | Trim for dashboard carbon fibre driver | SCHWARZCHROM | 1 | 07/2015 | 51458068608 | ||||
| For vehicles with Fine wood 'Fineline' anthracite/accent |
S4FUA=Yes |
||||||||
| 05 | Trim for dashb.Fineline anthrac.driver | PERLGLANZ CHROM | 1 | 07/2015 | 51459357926 | ||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre |
S4LXA=Yes S4MCA=Yes |
||||||||
| 05 | Trim for dashboard carbon fibre driver | SCHWARZCHROM | 1 | 07/2015 | 51458057624 | ||||
| For vehicles with Blue Shadow accent black high gloss |
S4WHA=Yes |
||||||||
| 06 | Cov.pan.f.dashboard blue Shadow fr.pass. | SCHWARZ GLANZ | 1 | 07/2015 | 51458068614 | ||||
| For vehicles with Al blade accent black chrome |
S4WKA=Yes |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 07/2015 | 07/2016 | 51458068618 | ENDED, NoS | ||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZ GLANZ | 1 | 07/2016 | 51456832643 | ||||
| For vehicles with Carbon fiber accent black chrome |
S4WLA=Yes |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 07/2015 | 51458068610 | ||||
| For vehicles with Fine wood 'Fineline' anthracite/accent |
S4FUA=Yes |
||||||||
| 06 | Trim instr.panel Fineline anthr.fr.pass. | PERLGLANZ CHROM | 1 | 07/2015 | 51459357928 | ||||
| For vehicles with Accent strips in black chrome and Interior trim moldings 'Aluminium Blade' and Al blade accent black chrome |
S4LXA=Yes S4LYA=Yes S4WKA=Yes |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 51458057628 | |||||
| For vehicles with Accent strips in black chrome and Interior trim moldings 'Aluminium Blade' and Al blade accent black chrome |
S4LXA=Yes S4LYA=Yes S4WKA=No |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 51458057628 | |||||
| For vehicles with Accent strips in black chrome and Interior trim moldings 'Aluminium Blade' and Al blade accent black chrome |
S4LXA=Yes S4LYA=No S4WKA=Yes |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 51458057628 | |||||
| For vehicles with Accent strips in black chrome and Interior trim moldings 'Aluminium Blade' and Al blade accent black chrome |
S4LXA=No S4LYA=Yes S4WKA=Yes |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 51458057628 | |||||
| For vehicles with Accent strips in black chrome and Interior trim moldings 'Aluminium Blade' and Al blade accent black chrome |
S4LXA=No S4LYA=No S4WKA=Yes |
||||||||
| 06 | Cover panel dashb.Al Blade front pass. | SCHWARZCHROM | 1 | 51458057628 | NoS | ||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre and Carbon fiber accent black chrome |
S4LXA=Yes S4MCA=Yes S4WLA=Yes |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51454801746 | ENDED | ||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51458057630 | |||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre and Carbon fiber accent black chrome |
S4LXA=Yes S4MCA=Yes S4WLA=No |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51454801746 | ENDED | ||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51458057630 | |||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre and Carbon fiber accent black chrome |
S4LXA=Yes S4MCA=No S4WLA=Yes |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51454801746 | ENDED | ||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51458057630 | |||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre and Carbon fiber accent black chrome |
S4LXA=No S4MCA=Yes S4WLA=Yes |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51454801746 | ENDED | ||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51458057630 | |||||
| For vehicles with Accent strips in black chrome and Interior moldings Carbon Fibre and Carbon fiber accent black chrome |
S4LXA=No S4MCA=No S4WLA=Yes |
||||||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51454801746 | ENDED, NoS | ||||
| 06 | Trim for dashb.carbon fibre front pass. | SCHWARZCHROM | 1 | 51458057630 | |||||
| 07 | Clamp | 7 | 07147321144 | ||||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=No |
||||||||
| 08 | Cover, light operating unit | SCHWARZ | 1 | 51459239295 | +core | ||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=Yes |
||||||||
| 08 | Cover, light operating unit | SCHWARZ | 1 | 51459239295 | +core | ||||
| For vehicles with Individual leather-covered dashboard and korall-rot/Akzent schwarz |
S4M5A=No L5=Yes |
||||||||
| 08 | Cover, light operating unit | KORALLROT | 1 | 51459271855 | |||||
| For vehicles with Individual leather-covered dashboard and Saddlebrown or sattel-braun Exklusivnaht |
S4M5A=No DY=Yes LX=Yes |
||||||||
| 08 | Cover, light operating unit | SATTELBRAUN | 1 | 51459239296 | +core | ||||
| For vehicles with Individual leather-covered dashboard and oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark or oyster/schwarz |
S4M5A=No DH=Yes L9=Yes OM=Yes OP=Yes |
||||||||
| 08 | Cover, light operating unit | OYSTER | 1 | 51459239298 | +core | ||||
| For vehicles with Individual leather-covered dashboard and Veneto-beige or veneto-beige/Akzent oyster dunkel or veneto-beige/Akzent oyster dunkel or Veneto beige exclusive seam or Veneto-beige or Veneto beige exclusive seam |
S4M5A=No DF=Yes FJ=Yes FL=Yes LY=Yes V1=Yes V2=Yes |
||||||||
| 08 | Cover, light operating unit | VENETOBEIGE | 1 | 51459239297 | +core | ||||
| 09 | Trim panel, I-panel, outer left | SCHWARZ | 1 | 51459239303 | +core | ||||
| 09 | Trim panel, I-panel, outer right | SCHWARZ | 1 | 51459239304 | +core | ||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging |
S4M5A=No S6NWA=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | SCHWARZ | 1 | 07/2016 | 51459393654 | ||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging |
S4M5A=No S6NWA=No |
||||||||
| 10 | Cover panel, Centerstack, lower | SCHWARZ | 1 | 51459241178 | |||||
| For vehicles with Phoning with wireless charging and 100% Leather merino |
S6NWA=No X3=Yes |
||||||||
| 10 | Trim leather Center Stack bottom | SCHWARZ | 1 | 51458062561 | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging |
S4M5A=Yes S6NWA=Yes |
||||||||
| 10 | Trim leather Center Stack bottom | SCHWARZ | 1 | 07/2016 | 51458071514 | ||||
| For vehicles with Phoning with wireless charging and 100% Leather merino |
S6NWA=Yes X3=Yes |
||||||||
| 10 | Trim leather Center Stack bottom | SCHWARZ | 1 | 07/2016 | 51458071514 | NoS | |||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and korall-rot/Akzent schwarz |
S4M5A=No S6NWA=Yes L5=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | KORALLROT | 1 | 07/2016 | 51456820214 | ||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and korall-rot/Akzent schwarz |
S4M5A=No S6NWA=No L5=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | KORALLROT | 1 | 51459271864 | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and Saddlebrown or sattel-braun Exklusivnaht |
S4M5A=No S6NWA=No DY=Yes LX=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | SATTELBRAUN | 1 | 51459241180 | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark or oyster/schwarz |
S4M5A=No S6NWA=No DH=Yes L9=Yes OM=Yes OP=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | OYSTER | 1 | 51459241181 | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and Veneto-beige or veneto-beige/Akzent oyster dunkel or veneto-beige/Akzent oyster dunkel or Veneto beige exclusive seam or Veneto-beige or Veneto beige exclusive seam |
S4M5A=No S6NWA=No DF=Yes FJ=Yes FL=Yes LY=Yes V1=Yes V2=Yes |
||||||||
| 10 | Cover panel, Centerstack, lower | VENETOBEIGE | 1 | 51459241179 | |||||
| 11 | Fixing clamp, cover | 1 | 07149352988 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part, central, not in stock.)
- ENDED = the part has been discontinued (no longer available).
