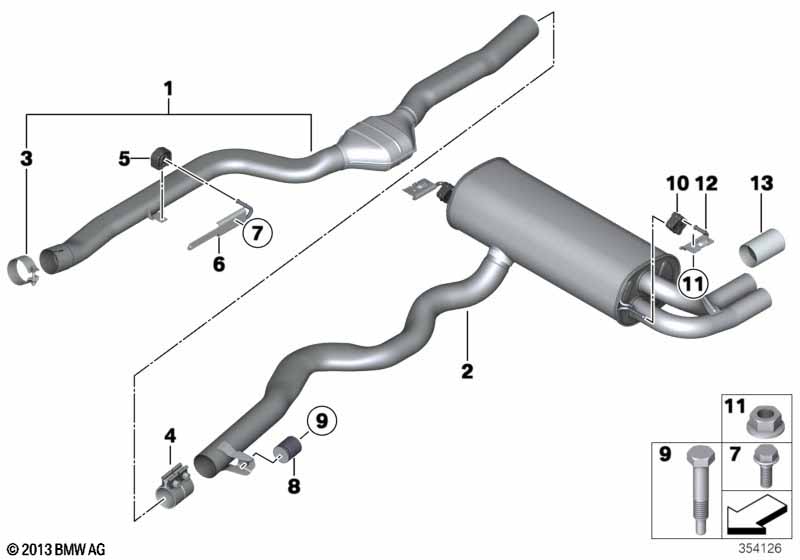

3' F34 GT LCI 335dX Exhaust system, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | RP-catalytic converter | EU6 | 1 | 03/2018 | 18308577027 | ||||
| 02 | Rear muffler | 1 | 03/2018 | 18308577029 | |||||
| 03 | Muffler clamp | D=72MM | 1 | 03/2018 | 18308632362 | ||||
| 04 | Clamping bush | D=75MM | 1 | 03/2018 | 18307560781 | $152.42 | |||
| 05 | Rubber Mounting | 1 | 03/2018 | 18208570088 | |||||
| 06 | Gearbox support | 1 | 03/2018 | 18208518706 | |||||
| 07 | Hex bolt | M8X20-8.8ZNS3 | 2 | 03/2018 | 07119904401 | $0.38 | |||
| 10 | Rubber Mounting | 2 | 03/2018 | 18307616850 | |||||
| 11 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | ||||
| 12 | Bracket for rear silencer, left | 1 | 03/2018 | 18308516522 | |||||
| 12 | Bracket, rear muffler right | 1 | 03/2018 | 18308572851 | |||||
| For vehicles with Sport Line |
P7ACA=Yes |
||||||||
| 13 | Tailpipe tip, black chrome | 2 | 03/2018 | 18307610636 | +core | ||||
| For vehicles with Sport Line |
P7ACA=No |
||||||||
| 13 | Tailpipe tip, chrome | 2 | 03/2018 | 18307610634 | +core | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
