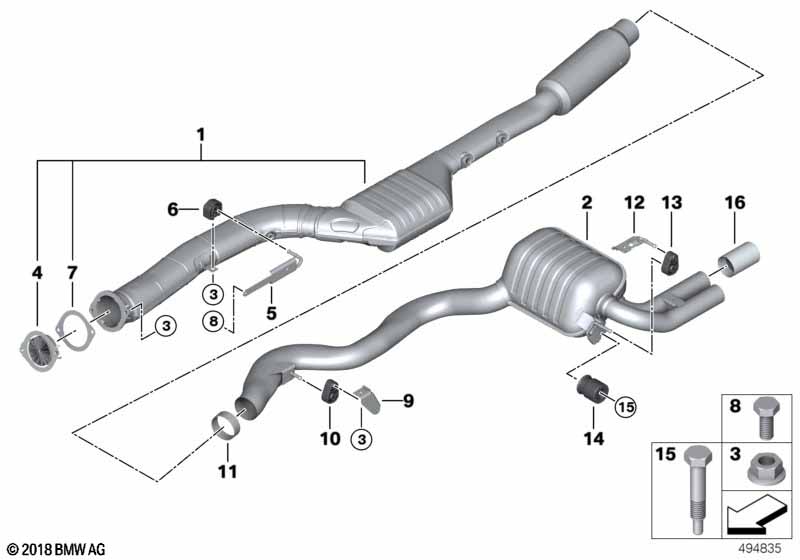

3' F34 GT LCI 335dX Exhaust system, rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 03/01/2018 |
||||||||
| 01 | Exchange SCR catalytic converter | 1 | 18308594683 | ||||||
| 02 | Rear muffler | 1 | 18308594684 | ||||||
| 03 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | ||||
| 04 | Mixer | 1 | 18308594612 | ||||||
| 05 | Gearbox support | 1 | 18208474478 | ||||||
| 06 | Rubber Mounting | 1 | 18208471792 | ||||||
| 07 | Flat gasket | 1 | 18308594611 | ||||||
| 08 | Hex bolt with washer | M8X18-U1-8.8 | 2 | 07119905529 | $0.96 | ||||
| 09 | Rear silencer bracket | 1 | 18308476560 | ||||||
| 10 | Rubber Mounting | 2 | 18208637876 | ||||||
| 11 | Welding sleeve | 1 | 18308597283 | ||||||
| 12 | Bracket for rear silencer, left | 1 | 18308581933 | ||||||
| 13 | Rubber Mounting | 1 | 18208587578 | ||||||
| 14 | Vibration absorber | 35HZ | 1 | 18307793014 | $54.00 | ||||
| 15 | Collar screw | M8X70 | 1 | 18407540023 | $4.07 | ||||
| For vehicles with Omission of specific design scopes |
S3DEA=Yes |
||||||||
| 16 | Tailpipe tip, black chrome | 1 | 18307610636 | +core | |||||
| 16 | Tailpipe tip, chrome | 1 | 18307610634 | +core | |||||
| For vehicles with Sport Line |
P7ACA=No |
||||||||
| 16 | Tailpipe tip, chrome | 1 | 03/2019 | 18307610634 | +core | ||||
| For vehicles with Sport Line |
P7ACA=Yes |
||||||||
| 16 | Tailpipe tip, black chrome | 1 | 03/2019 | 18307610636 | +core | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
