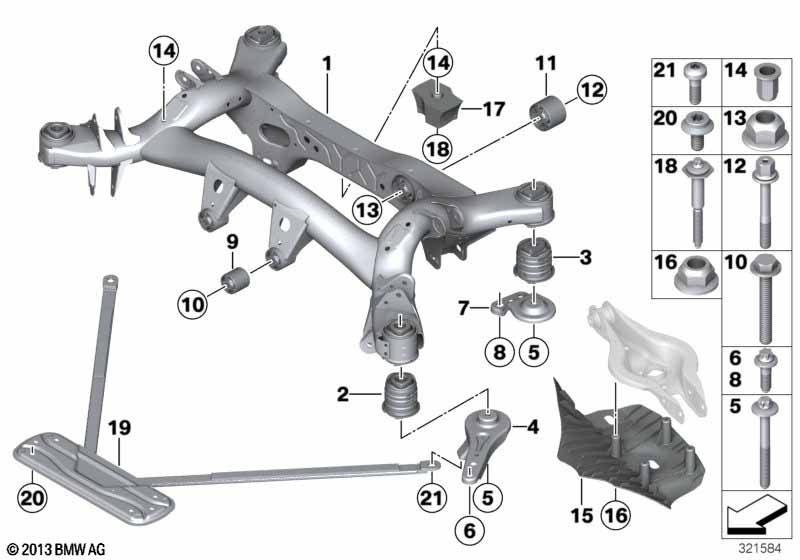

3' F34 GT LCI 335dX Rear axle carrier
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear axle carrier | 1 | 33316798968 | ||||||
| 02 | RUBBER MOUNTING front | 2 | 33316792509 | ||||||
| Required for repair | |||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | |||||
| 03 | RUBBER MOUNTING rear | 2 | 33316792512 | ||||||
| Required for repair | |||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | |||||
| 04 | Push rod left | 1 | 33326793651 | ||||||
| 04 | Push rod right | 1 | 33326793652 | ||||||
| 05 | Torx screw with collar | M12X1,5X110 | 4 | 33306793892 | |||||
| 06 | Torx screw with collar | M10X30-PC-10.9 | 4 | 33326796225 | |||||
| 07 | Push rod | 2 | 33316861812 | ||||||
| 08 | Hex bolt with washer | M10X22-10.9 | 4 | 31106864470 | |||||
| 09 | RUBBER MOUNTING front | 2 | 33316792513 | ||||||
| Required for repair | |||||||||
| -- | Installation tool | 250ML | 2 | 83192405829 | |||||
| 10 | Hex bolt with washer | M12X1,5X100 | 2 | 33176760343 | $2.05 | ||||
| 11 | RUBBER MOUNTING rear | 1 | 06/2016 | 33316792514 | ENDED | ||||
| 11 | RUBBER MOUNTING rear | 1 | 33316880637 | ||||||
| Required for repair | |||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | |||||
| 12 | Nut | M14X1,5X110 | 1 | 33176799183 | |||||
| 13 | Self-locking collar nut | M14X1,5-10 ZNS3 | 1 | 33306760349 | $1.33 | ||||
| 14 | Blind rivet nut, flat headed | M8 | 10 | 41132291403 | $1.53 | ||||
| Mounts Stabilizer Exhaust system or Vibration absorber |
|||||||||
| 15 | Covering left | 1 | 33326796137 | ||||||
| 15 | Covering right | 1 | 33326796138 | ||||||
| 16 | Self-locking hex nut | M6-8-ZNNIV SI | 8 | 07119905949 | $0.24 | ||||
| 19 | Tension strut | 1 | 03/2018 | 33316861811 | ENDED | ||||
| 19 | Tension strut | 1 | 05/2018 | 33316892486 | ENDED | ||||
| 19 | Tension strut | 1 | 33316895140 | ||||||
| 20 | Torx screw | M8X18-10.9 ZNS3 | 6 | 33326764505 | $0.80 | ||||
| 21 | Torx bolt | ISA M12X35-10.9 | 2 | 33306861221 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
