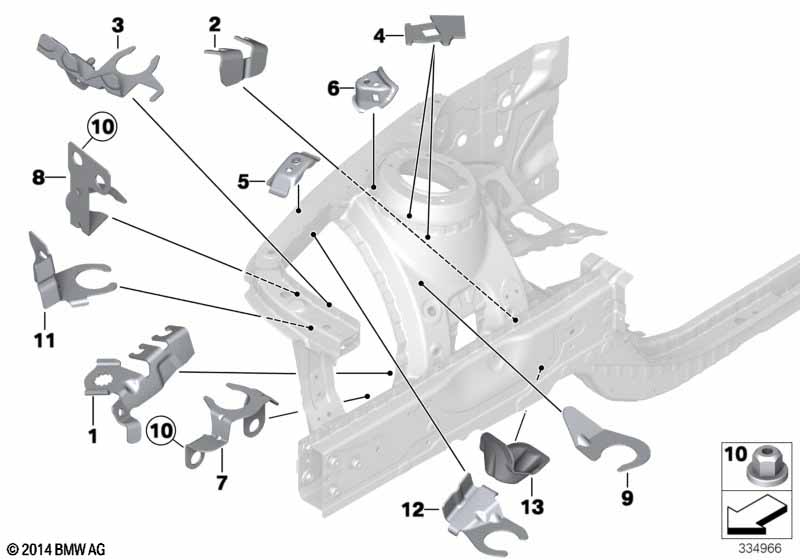

3' F34 GT LCI 335dX Front body bracket right
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder, brake hose, right | 1 | 41007284096 | ||||||
| 02 | Bracket RDS/brake wear indicator, right | 1 | 41107284098 | ||||||
| 03 | Bracket for intake silencer, right | 1 | 13718618896 | ||||||
| Required for repair | |||||||||
| -- | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | |||||
| 04 | Bracket, cable harness | 2 | 41107284086 | ||||||
| 11 | Bracket for intake filter, front | 1 | 01/2014 | 41007390655 | |||||
| 12 | Bracket for intake filter, side | 1 | 01/2014 | 41007390654 | |||||
