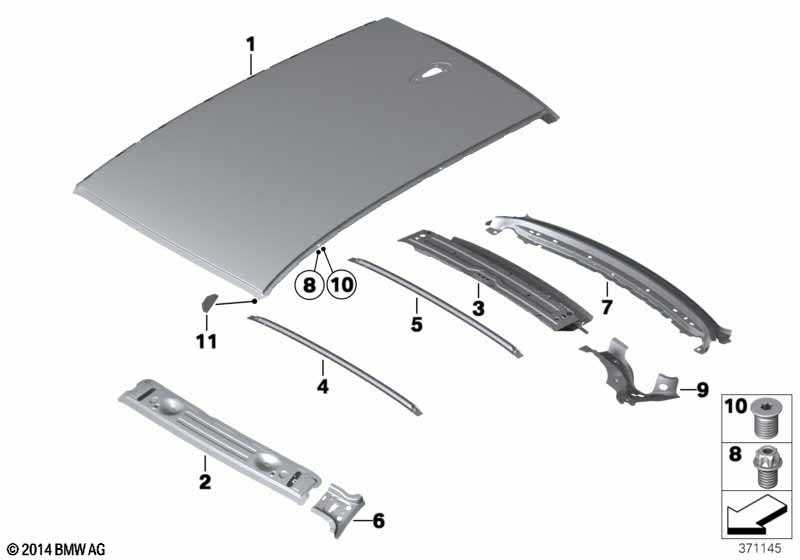

3' F34 GT LCI 335dX Roof
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| Performed using adhesive bonding/ riveting repair method. only applies to Roof outer shell replacement |
|||||||||
| 01 | Roof cover | 1 | 41317334032 | ||||||
| Required for repair | |||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | ||||
| -- | Body adhesive K5 | 195 ML | 2 | 83192157298 | |||||
| -- | Punch rivet N5 | 16 | 83192158079 | $0.39 | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | |||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Positioning aid T-bolt | 1 | 41222460152 | ||||||
| -- | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | ||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | |||||
| For vehicles with Electric panoramic roof Performed using adhesive bonding/ riveting repair method. only applies to Roof outer shell replacement |
S402A=Yes |
||||||||
| 01 | Roof panel f panoramic roof | 1 | 41317334055 | ||||||
| Required for repair | |||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | ||||
| -- | Body adhesive K5 | 195 ML | 2 | 83192157298 | |||||
| -- | Punch rivet N5 | 16 | 83192158079 | $0.39 | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | EBA 2446652 | ||||
| -- | Seam sealer | 300ML | 1 | 83422409985 | |||||
| -- | Positioning aid T-bolt | 1 | 41222460152 | ||||||
| -- | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | ||||
| -- | T-welding stud | L=5,4MM | 20 | 41318412638 | |||||
| 02 | Upper apron | 1 | 41327333952 | ||||||
| 03 | Rear window frame upper part | 1 | 41327333960 | ||||||
| 04 | Roof bow, front | 1 | 41007333962 | ||||||
| 05 | Rear roof bow | 1 | 41007333964 | ||||||
| 06 | Left upper apron reinforcement | 1 | 41217333935 | ||||||
| 06 | Right upper apron reinforcement | 1 | 41217333936 | ||||||
| Mounting for Roof rack system |
|||||||||
| 08 | Star screw with internal threads | M10 / M6 | 4 | 07147153767 | $1.98 | ||||
| 09 | Reinforcement,rear window frame top left | 1 | 41007333941 | ||||||
| 09 | Reinforcement,rear window frame top rght | 1 | 41007333942 | ||||||
Notes
- EBA = Einbauanleitung (Installation instructions)
