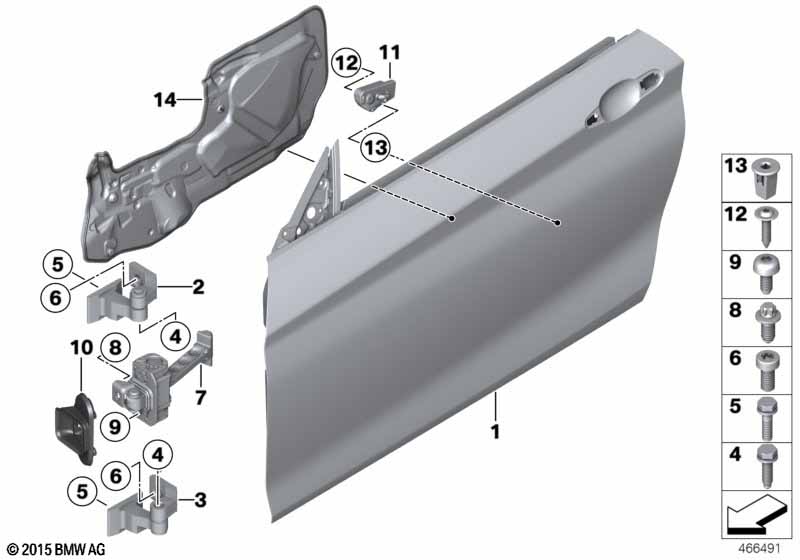

3' F34 GT LCI 335dX Front door-hinge/door brake
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 09/2014 | 41007406849 | |||||
| 01 | Door front right | 1 | 09/2014 | 41007406850 | |||||
| 02 | Left upper front door hinge | 1 | 41517284533 | +core | |||||
| 02 | Right upper front door hinge | 1 | 41517284534 | +core | |||||
| 03 | Left lower front door hinge | 1 | 41517284535 | +core | |||||
| 03 | Right lower front door hinge | 1 | 41517284536 | +core | |||||
| 04 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | |||||
| 05 | Hexagon screw with taper | M12X39 | 4 | 01/2018 | 07147184165 | $1.55 | |||
| 05 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | |||||
| 06 | Torx-countersunk head screw | ISA M10X28 | 4 | 07147266068 | |||||
| 07 | Door brake, front left | 1 | 06/2016 | 51217331408 | ENDED | ||||
| 07 | Door brake, front left | 1 | 51217446723 | ||||||
| 07 | Door brake, front right | 1 | 51217446724 | ||||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | ||||
| 09 | Torx-bolt with washer | ISA M6X12 | 4 | 51226976687 | $0.59 | ||||
| 10 | Door stop seal, front left | 1 | 51767291325 | ||||||
| 10 | Seal, door brake, front right | 1 | 51767291326 | ||||||
| 14 | Sound insulation, door, front left | 1 | 51487343919 | ||||||
| 14 | Sound insulation, door, front right | 1 | 51487343920 |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
