3' F34 GT LCI 320i Pedal assembly, automatic transmission

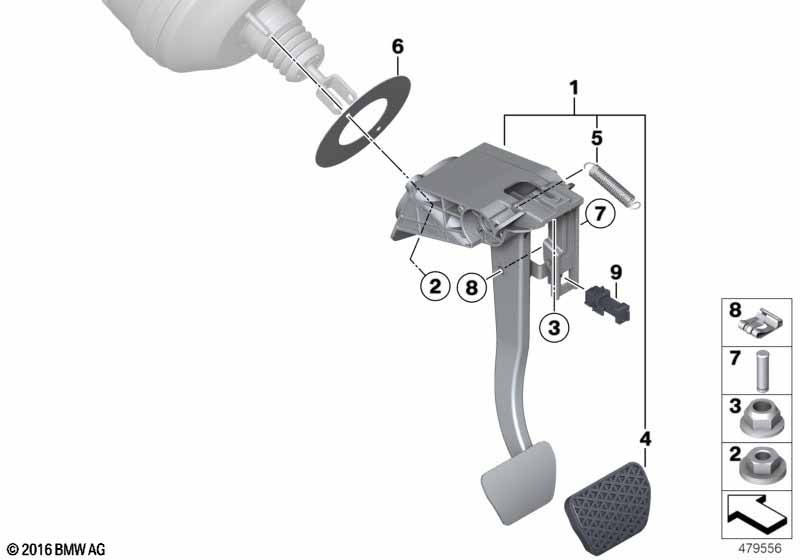

Pedal assembly, automatic transmission
No. Description Supp. Qty  From   Up To  Part Number Price Notes
No further intervention permitted
01 Complete pedal assembly 1 07/2018 35006860648 ENDED
02 Self-locking collar nut M8-10 ZNS3 2 07/2018 07119905374
Mount
Supporting bracket
03 Self-locking hex nut M6-8-ZNNIV SI 1 07/2018 07119905949 $0.24
Mount
Supporting bracket
04 Rubber pad B=100MM 1 07/2018 35211160421 $4.47
BRAKE PEDAL
05 Return spring D=13MM 1 07/2018 35301165321 $0.93
BRAKE PEDAL
06 Seal, brake booster 1 07/2018 34336857618
07 Brake pedal pin D=10X29,5 1 07/2018 34336753646 $1.67
Mount
POWER BRAKE UNIT
08 Fuse B10-ZNS3 1 07/2018 07129904567 $0.40
Mount
POWER BRAKE UNIT
09 Stop light switch 1 07/2018 35006876896
Notes
  • ENDED = the part has been discontinued (no longer available).
