3' E30 320is Window guide, rear

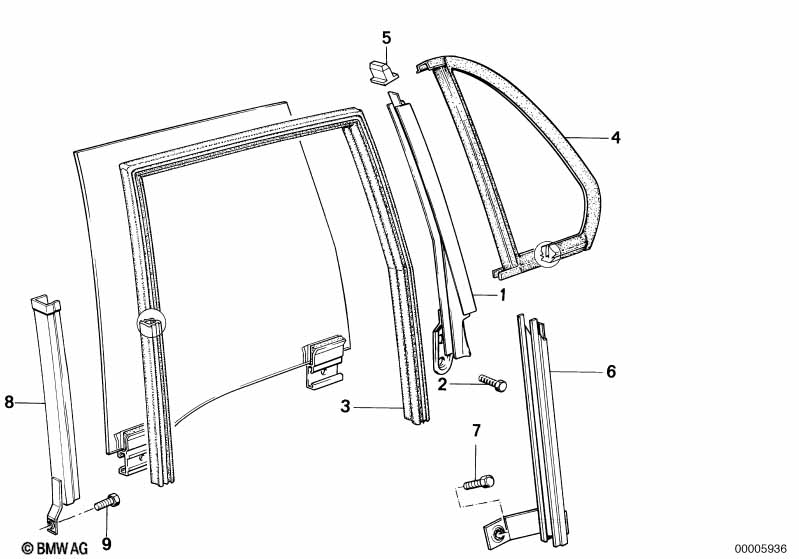

Window guide, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Guide rail rear left 1 51341906591 $43.28
01 Guide rail rear right 1 51341906592 $43.28
02 Hex bolt with washer M6X12-Z4-2 4 07119915015 $0.47
03 Left One-piece window guide 1 04/1988 51348103007 ENDED
03 Right One-piece window guide 1 04/1988 51348103008 ENDED
03 Left One-piece window guide 1 51341906807 $60.59
03 Right One-piece window guide 1 51341906808 $60.59
04 Window sealing rear left 1 51341906747 $20.11
04 Window sealing rear right 1 51341906748 $20.11
05 Grommet 1 51341922700 $0.18 ENDED
06 Guide rail rear left 1 04/1988 51341965051 $18.38
06 Guide rail rear right 1 04/1988 51341965052 $24.55
07 Hex bolt with washer M6X12-Z1 2 04/1988 07119915017 $0.36 ENDED
07 Hex bolt with washer M6X12-U1-8.8 2 04/1988 07119904517 $0.36
08 Guide rail front left 1 04/1988 41521961879 $12.95
08 Guide rail front right 1 04/1988 41521961880 $9.75
09 Hex bolt with washer M6X10-Z1 2 04/1988 07119915057 $3.05
Notes
  • ENDED = the part has been discontinued (no longer available).
