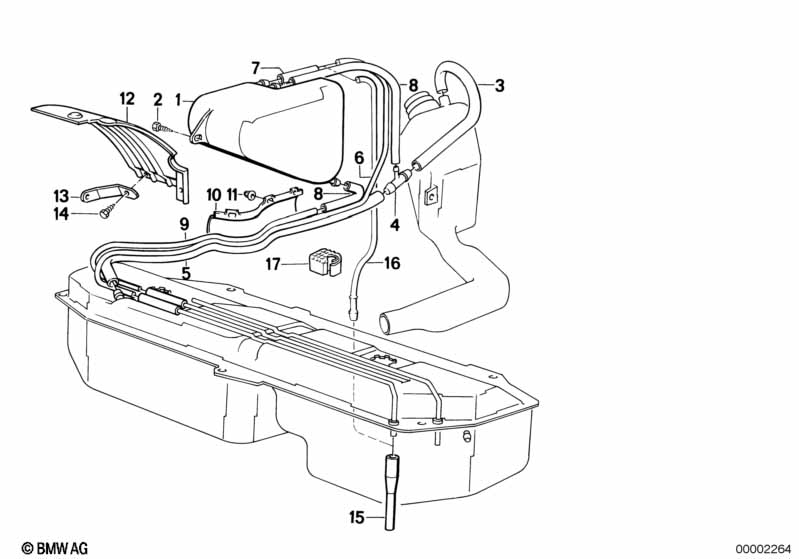

3' E30 318i Expansion tank/tubing

Expansion tank/tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 16131178014 $128.85
02 Hex head screw ST6,3X19-C-Z2 1 07119916967 $0.29
03 Hose 1 16111179675
04 Distribution piece 1 16131178752 $27.17
05 Hose 14X20X1340 1 16121177553 $34.54
06 Pipe 8X0,7X1805 1 16131178475 $67.02 +core
07 Fuel hose 8X13MM X 16121180409 $20.43
08 Fuel hose 6X11MM X 13311272750 $11.62
09 Pipe 6X0,7X1605 1 16131179694 $4.32
10 Cover 1 16131179011 $43.68
11 Plastic nut M6 4 16131176747 $0.53
12 Protection plate 1 16131179779 $9.20
13 Holder 1 16131176749 $1.83
14 Hex head screw ST6,3X16-C-Z2 2 07119916966 $0.27
For vehicles with
without catalytic converter

S199A=Yes
15 End piece 1 16131177514 $1.73
Notes
  • +core = plus core charge (possibility of a return of the old part)
