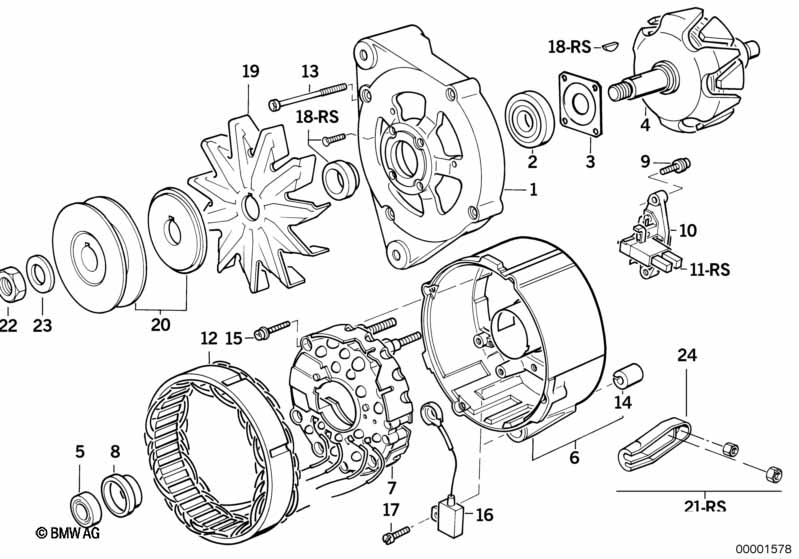

3' E30 318i Alternator, individual parts 80A

Alternator, individual parts 80A
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR BOSCH
Typ Nr. 0 120 469 830
only applies to
-- Alternator 80A X 12311717575 ENDED
-- Exch. generator 80A X 12311721229 ENDED
01 Housing assy front 1 12311727739 $92.35 ENDED
02 Grooved ball bearing 47X17X14 1 12311722979 $33.90 ENDED
03 Supporting plate 1 12311727740 $7.13
04 Rotor 1 12311288423 $382.79 ENDED
05 Grooved ball bearing 32X12X10 1 12311739203 $21.20
06 Housing assy rear 1 12311727747 $56.08 ENDED
07 Diode assy 1 12311727749 $155.12 ENDED
08 Ring 1 12311727751 $2.25
09 Fillister-head screw 2 12311747251 $0.58
10 Voltage regulator 1 12311726022 $124.68
11 Carbon brush set 1 12311727756 $18.07
12 Stator assy 1 12311727758 $309.13 ENDED
13 Fillister-head screw 4 12311727760 $3.53
14 Bush 1 12311727761 $11.30
15 Screw 6 12311727753 $2.62
16 Suppression capacitor alternator BOSCH 1 12311356564 $18.88 +core
17 Fillister-head screw 1 12311722966 $0.70
18 Repair kit rotor 1 12311727762 $18.57
19 Fan wheel 1 12311735306 $18.03
20 Pulley 1 12311721248
21 Parts set B+/D+ 1 12311727764 $15.68
22 Hex nut M16X1,5-04-ZNS 1 07119901307 $1.80
23 Wave washer B16 1 07119932162 $0.24
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
