3' E30 320i Single parts for rear window cleaning

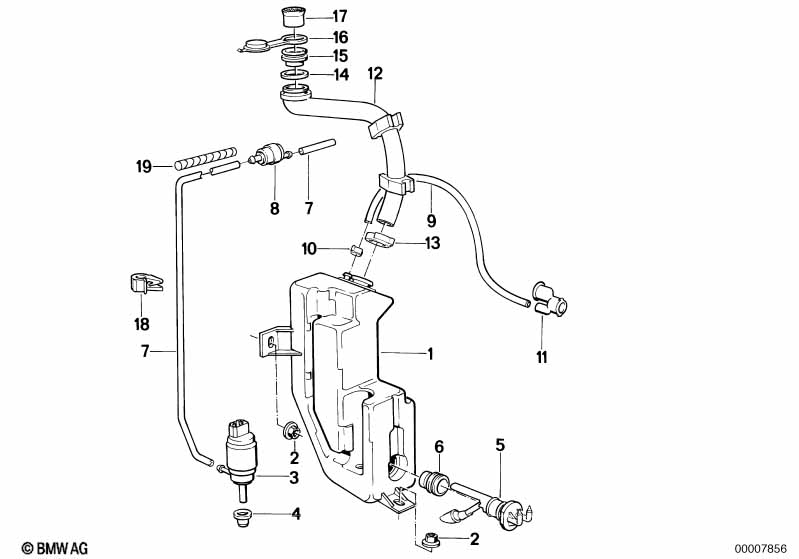

Single parts for rear window cleaning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Rear window
01 Fluid container 1 61681381559 ENDED
02 Plastic capnut with washer D=18MM 2 51161943122 $0.39
03 Wash pump 1 61661380066 $43.89 ENDED
03 Wash pump/fluid container 1 61661377830
04 Gasket 1 61661365657 $1.17
05 Levelling switch 1 61311388578 $32.46 ENDED
05 Levelling switch 1 61311388548
06 Rubber grommet 1 61311369343 $1.93
07 Hose line D= 4,6MM X 61661357388 $5.05
07 Hose line D= 7MM X 61671388366 $1.41
08 Valve 1 61661380464 $7.71
09 Vent hose 1 61681381761 ENDED
10 Hose clamp L=9-12 1 07129952102 $1.18
11 Hose connector 1 61681385952
12 Pipe 1 61681381760 ENDED
13 Hose clamp L18-24 1 07129952109 $1.07
14 Bottom cover 1 61681386303 $1.77
15 Center cover 1 61681386302 $4.18
16 Upper cover 1 61681386301 $1.18
17 Strainer 1 61681386307 $1.32 ENDED
18 Holder D=10MM 7 61131362825 $0.62
19 Protective hose 1 12141306988 $9.25
Notes
  • ENDED = the part has been discontinued (no longer available).
