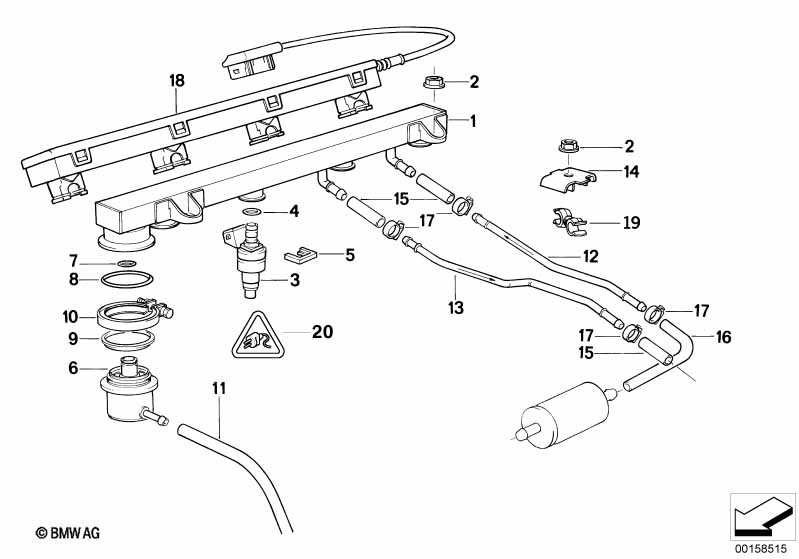

3' E30 318i Valves/Pipes of fuel injection system

Valves/Pipes of fuel injection system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Injection tube 1 13531727055 $81.47 ENDED
02 Hex bolt with washer M6X25-Z3 2 02/1990 07119915046 $0.47
03 Injection valve 4 13641466116 $72.50 ENDED
03 Injection valve BOSCH 4 13641726988 $137.88 ENDED
03 Injection valve BOSCH 4 13641706176 $113.07
04 O-ring 7,52X3,53 8 13641730767 $3.75
05 Clamp 4 13531274729 $0.67
06 Pressure regulator 3,0BAR/BOSCH 1 13531743378 $116.12
07 O-ring 5X1,5 1 13531720252 $3.75
08 O-ring 20X2,5 1 13531720251 $4.38
09 Retainer 1 13531721936 $3.12
10 Muffler clamp 1 13531718361 $22.20
11 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
12 Feed line 1 01/1991 13531727035
12 Feed line 1 01/1991 13531734195 $20.64
only in conjunction with
-- Return pipe 1 01/1991 13531734196 $21.39
12 Feed line 1 01/1991 13531734195 $20.64
13 Return pipe 1 01/1991 13531734196 $21.39
only in conjunction with
-- Feed line 1 01/1991 13531734195 $20.64
13 Return pipe 1 01/1991 13531734196 $21.39
14 Fuel pipe bracket 1 13531717650 $5.35
15 Fuel hose 8X13MM X 16121180409 $20.43
16 Fuel hose 32MM-210MM 1 13311288284 $17.10
17 Hose clamp L12-15 8 07129952104 $1.18
18 Plug-board 1 12511724303 $157.36 ENDED
19 Hose clamp 1 13311287351 $1.73
20 Socket housing 2 POL. 1 12521427221 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 12521427612 $0.50 SI 2 02 05(194)
only applies to
-- Injection valve BOSCH X 13641726988 $137.88 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
