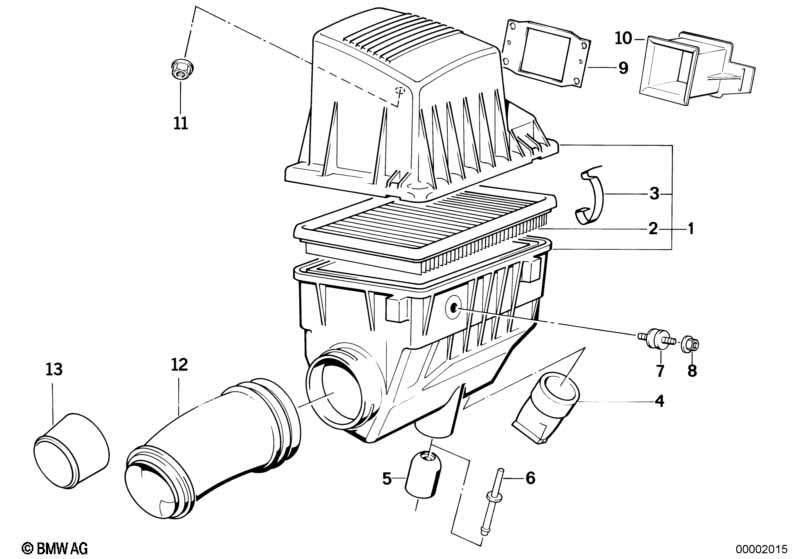

3' E30 318i Intake silencer / Filter cartridge Intake silencer / Filter cartridge

Intake silencer / Filter cartridge Intake silencer / Filter cartridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 13711709756 $233.75
01 Intake muffler with cyclon 1 13711717933 ENDED
02 Air filter element 1 13721715881 $26.34 ENDED
02 Air filter element 1 13721720861
03 Spring clip L=34MM 4 13711707044 $1.16
04 Zyklon pre separator KNECHT 1 13711730279 $8.23
05 Rubber Mounting 1 13711717580 $2.23
06 Expanding rivet 1 13711721597 $0.50
07 Rubber Mounting 2 13711259818 $6.98
08 Hex nut M6-Z2 2 02/1994 51451868108 $0.50 ENDED
08 Hex nut with plate M6 2 07147134319 $1.05
09 Sealing frame 1 13711705064 $0.70
10 Funnel 1 13711709769 $17.14
11 Stop nut M6 4 02/1994 51211803363 $1.10 ENDED
11 Self-locking hex nut M6 4 07147153450 $0.47
12 Intake tube 1 13711727097 $53.88
13 Intake manifold 1 13711727094 $5.61 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
