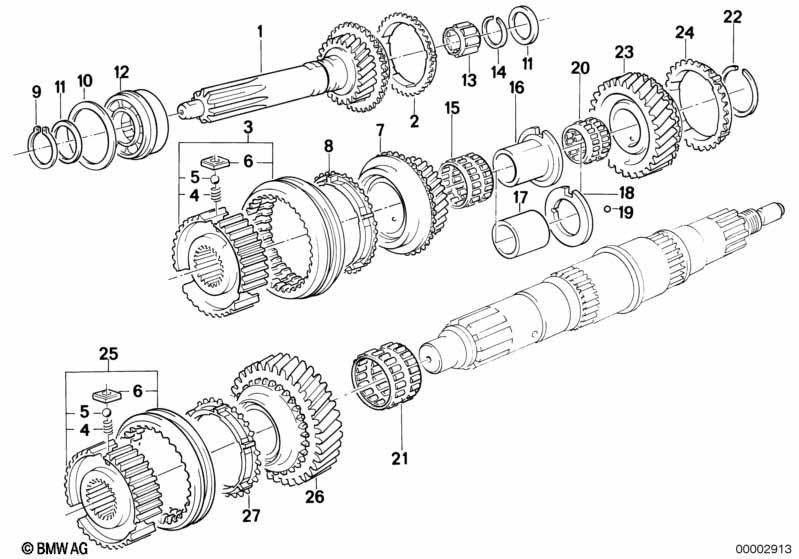

3' E30 318i Getrag 240 gear wheel set,single parts

Getrag 240 gear wheel set,single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive Shaft 1 09/1990 23211224090 $571.95 ENDED
01 Drive Shaft 1 09/1990 23211228459 $597.06
only in conjunction with
-- Grooved ball bearing 15X32X10 1 09/1990 11211720310 $22.42
01 Drive Shaft 1 09/1990 23211228459 $597.06
02 Synchronizer ring 1 12/1987 23231228242 $90.84
03 Guide sleeve 3rd and 4th gear 1 23231228290 $294.45
04 Compression spring X 12/1987 23231224368 $6.45
05 Ball X 12/1987 23231224365 $1.02
06 Insert X 12/1987 23231228244 $3.67
07 Shift gear for 3rd. gear 1 12/1987 23221228211 $299.09 ENDED
08 Synchronizer ring 1 12/1987 23231228242 $90.84
09 Snap ring 30X2 1 23221209435 $4.08
10 Shim 52X65X1,3 X 23121220243 $4.98
10 Shim 52X65X1,4 X 23121220244 $3.13
10 Shim 52X65X1,5 X 23121220245 $5.73
11 Support 30X42X2,5 X 23121630150 $1.97
11 Support 30X42X2,4 X 23121630151 $3.13
11 Support 30X42X2,65 X 23221224470 $5.90
11 Support 30X42X2,55 X 23221224469 $4.24
11 Support 30X42X2,45 X 23221224468 $4.24
11 Support 30X42X2,35 X 23221224467 $4.67
11 Support 30X42X2,3 X 23121630152 $3.13
11 Support 30X42X2,6 X 23211207172 $2.90
12 Roller bearing 63X30X24,8 1 02/1984 23121224375 $87.90 ENDED
12 Roller bearing 63X30X24,8 1 02/1984 23121224374
13 Needle cage 35X23X16 1 23221207784 $18.62
14 Snap ring 30X2 1 23221209435 $4.08
15 Needle cage 1 23221228279 $43.20
17 Spacer bush 1 07/1985 23221228031 $54.13
18 Stop disk 1 07/1985 23221228225 $12.00
19 Ball 1 07/1985 23221228032 $0.36 ENDED
20 Needle cage 42X37X27,5 1 23221204205 $15.90 ENDED
20 Needle cage 42X37X27,5 1 23221204605
21 Needle cage 42X47X28,5 1 23221224060 $17.60
22 Snap ring 36,5X2,0 X 23221224112 $5.10
22 Snap ring 36,5X1,9 X 23221224113 $1.69 ENDED
22 Snap ring 36,5X1,7 X 23221224114 $3.07
22 Snap ring 36,5X1,8 X 23221224174 $2.50
23 Shift gear for 2nd. gear 1 12/1987 23221228252 $396.18 ENDED
24 Synchronizer ring 1 12/1987 23231228242 $90.84
25 Guide sleeve 1st and 2nd gear 1 23237546651 $399.03
26 Shift gear for 1st. gear 1 12/1987 23221228207 $393.07
27 Synchronizer ring 1 12/1987 23231228241 $94.68
Notes
  • ENDED = the part has been discontinued (no longer available).
