3' E30 318i Mechanical headrest rear

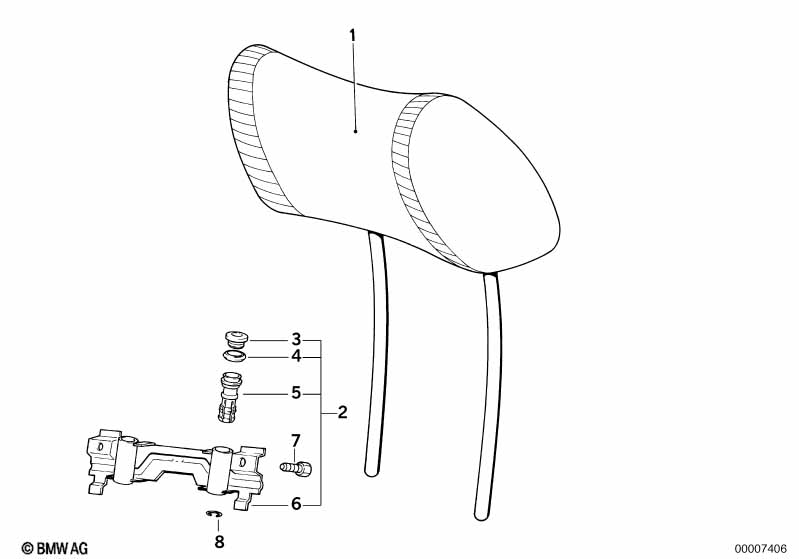

Mechanical headrest rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Set mounting parts headrest rear 1 52209058393 $41.57 EBA 9783798
03 Cover 4 52101838968 $0.44 ENDED
03 Cover SCHWARZ 4 52108191245 $1.66
04 Covering Lower 4 52101838969 $0.43
05 Guide 4 52101937306 $1.02 ENDED
05 Guide bush 4 52208132020 $1.80
06 Holder 2 52201916156 $23.28
07 Hex bolt with washer M6X16-Z1 4 12/1992 07119915039 $0.27 ENDED
07 Hex bolt with washer M6X16-U1-ZNS3 4 07119903844 $0.38 ENDED
07 Hex bolt with washer M6X16-U1-8.8 4 07119904524 $0.25
08 Spring washer 4 52101928809 $0.23
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • ENDED = the part has been discontinued (no longer available).
