3' E30 320is Gearshift manual transmission

Sponsored links

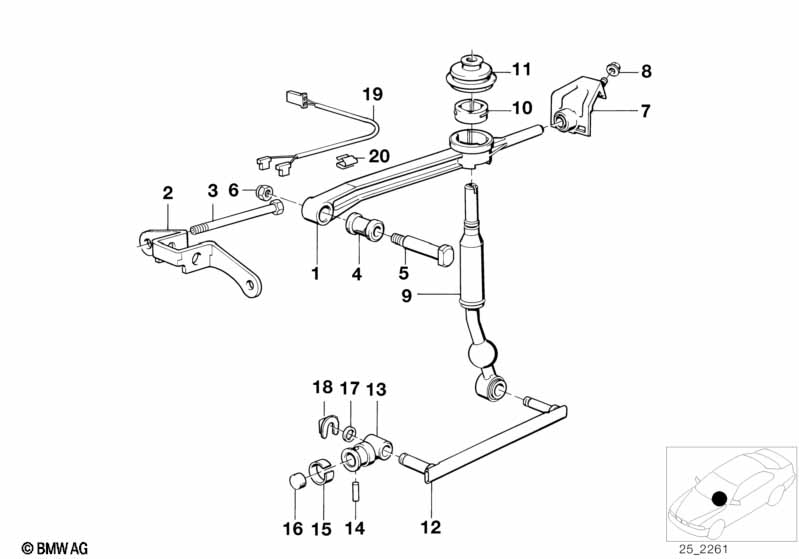

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Shifting arm		1			25111221201	$37.80
02	Bow		1			25112225369	$5.18
03	Hex bolt	M8X140	2			07119912588	$5.19		ENDED
04	Bearing sleeve, round	L=26MM	1			25117519669	$11.92
05	Pin		1			25112225344	$4.97
06	Self-locking collar nut	M8-8-ZNS	1		07/2007	31331092887	$0.58		ENDED
06	Self-locking collar nut	M8-8-ZNS3	1			07119904295	$0.36
06	Self-locking collar nut	M8-10 ZNS3	1			07119905374
07	Bearing, shifting arm		1			25111220707	$27.05
08	Self-locking hex nut	M8	1		07/2007	07129946400	$0.35		ENDED
08	Self-locking hex nut	M8-8-ZNNIV SI	1		07/2007	07129905767	$0.27		ENDED
08	Self-locking hex nut	M8-8-ZNNI SI	1			07129906196	$1.60
09	Shift lever		1			25112225786	$117.63
10	Bearing, shift lever		1			25111220600	$10.33
11	Rubber boot		1			25111220912	$15.39
12	Straight selector rod		1			25111220322	$30.39
13	Gearshift rod joint	SCHWARZ	1			25117503525	$37.51
14	Dowel pin		1			23411466134	$0.70
15	Tension bush		1			25111203682	$1.18
16	Shim		1			25112226585	$4.27		ENDED
16	Plastic washer		1			25111434194	$0.85
17	Plastic washer	10X16X0,9	4			25111220439	$0.25
18	Circlip		2			25111220379	$0.67		ENDED
18	Securing clip		2			25117571899	$0.66
19	Tubing backup light switch		1			23141220284	$8.14
20	Cable clamp		2			25111220837	$0.68

Notes

• ENDED = the part has been discontinued (no longer available).
