3' E46 316i 1.9 Hydro steering-oil pipes

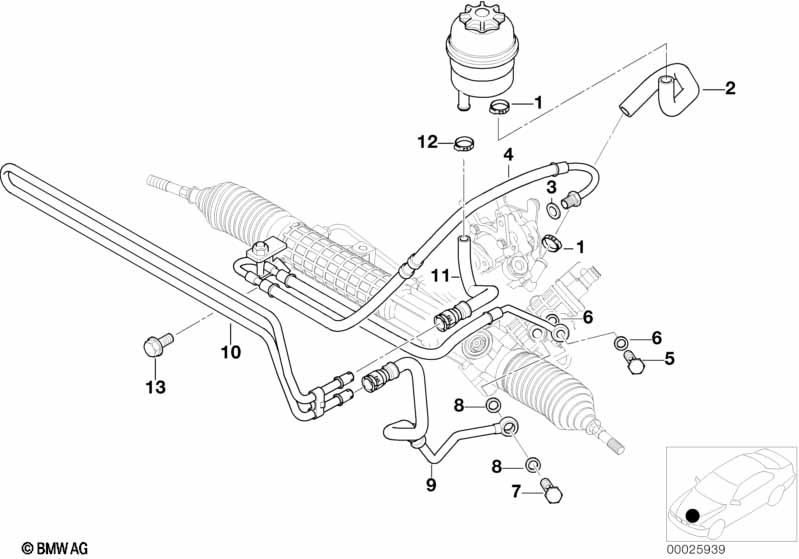

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hose clamp L18-24 2 09/1999 07129952109 $1.07
01 Hose clamp 2 09/1999 32416751127 $1.12
02 Suction pipe 1 09/1999 32411094942 $32.68
02 Suction pipe 1 09/1999 32416750152 $32.68
03 Gasket ring D=7,65MM 1 64508390601 $1.93
04 Pressure hose assy 1 09/1999 32411094943 $290.93
04 Pressure hose assy 1 09/1999 32416750153
05 Banjo bolt with check valve M14X1,5X27,4 1 32416781261 $10.02
06 Gasket ring A14X20-CUSN 2 32411093596 $0.31
07 Hollow bolt M16X28 1 02/2012 32416783887 $3.98 ENDED
07 Hollow bolt M16X28 1 32416852470
08 Gasket ring A16X22-CUSN 2 32411093597 $0.27
09 Return pipe 1 32416796382
10 Cooling coil 1 17111436262 $57.27
11 radiator return line 1 32416796389
12 Hose clamp D=16,6-20MM 1 16121180242 $1.08
12 Hose clamp 1 09/2001 32416751128 $0.98
13 Hex bolt with washer M6X12-U1-8.8 1 07119904517 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
