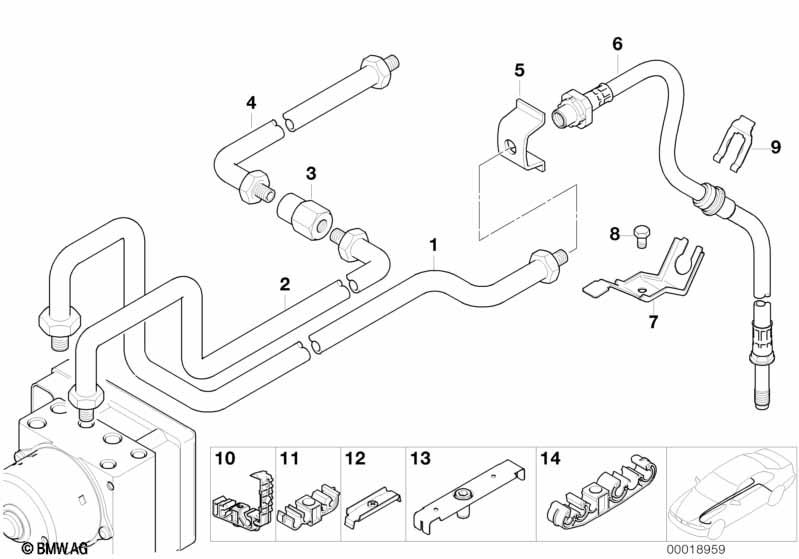

3' E46 323i Brake pipe rear ABS/ASC+T

Brake pipe rear ABS/ASC+T
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M10/M12-3635MM 1 09/2001 34326754940 $17.68
02 Pipe M10/M10-3850MM 1 10/1999 34326755706 $17.08
02 Pipe M10/M10-3798MM 1 10/1999 09/2001 34326755704 $14.13
03 Intermediate piece M10X1 1 09/2001 34326757282 $4.08
04 Pipe M10/M10-1175MM 1 06/1999 34326755612 $8.65
04 Pipe M10/M10-1206MM 1 09/2001 34326766825 $8.05
04 Pipe M10/M10-1206MM 1 06/1999 09/2001 34326766825 $8.05
05 Clip 2 09/2001 34341163565 $0.97
06 Brake hose rear 2 09/2001 34301165174 $39.55
07 Brake pipe bracket 2 09/2001 34301164003 $4.00
08 Hex bolt with washer M6X12-U1-8.8 2 09/2001 07119904517 $0.36
09 Retaining spring f brake hose 2 09/2001 34306771981 $0.52
10 Bracket, brake pipe, 4-fold 1 09/2001 34301165471 $1.85
11 Brake pipe bracket 1 09/2001 34301164005 $0.68
12 Bracket 1 09/2001 34306773697 $0.62
13 Bracket 2 09/2001 16127195327 $2.12
14 Pipe clip 2 09/2001 16121183772 $1.43
