3' E46 323i Front brake pipe, DSC

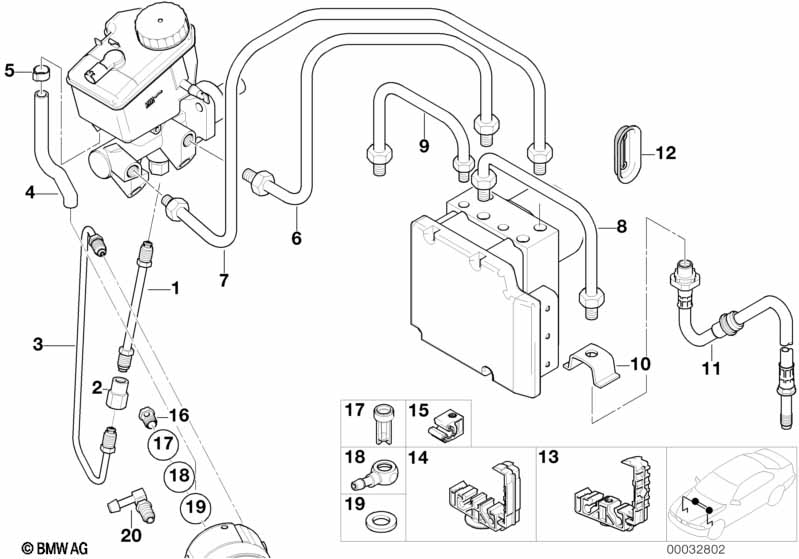

Front brake pipe, DSC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M12/M12 1 11/1998 34511164676 ENDED
01 Pipe 1 09/2000 34516754887 ENDED
01 Pipe 1 11/1998 09/2000 34516754887 ENDED
02 Intermediate piece M12X1 1 09/2000 34326757285 $4.08
03 Pipe M12/M12 1 09/2000 34516754889 ENDED
04 Hose elbow 1 09/2000 34321164678 ENDED
05 Hose clamp 2 09/2000 32411172711 $0.62
06 Pipe M12/M12 1 09/2000 34326754864 ENDED
07 Pipe M12/M12 1 09/2000 34326754866 ENDED
08 Pipe M10/M12-643MM 1 09/2000 34326754873
09 Pipe M10/M10-2272MM 1 09/2000 34326755660 $17.08
10 Clip 2 09/2000 34341163565 $0.97
11 Brake hose front 2 09/2000 34326766966 $46.95
12 Rubber grommet 2 09/2000 34331161163 $1.53
13 Bracket, brake pipe, 4-fold 1 09/2000 34301165471 $1.85
14 Bracket, brake pipe, 5-fold 2 09/2000 34301164313 $2.23
15 Brake pipe bracket 1 09/2000 34301165382 $0.90
16 Hollow bolt with filter 1 11/1998 34511165845 $32.64 ENDED
18 Connector 1 11/1998 34511165846 ENDED
19 Gasket ring A14X18-AL 2 11/1998 07119963200 $0.38
20 Angle piece 1 11/1998 09/2000 34511164464 $12.13
20 Angle piece 1 09/2000 34511164464 $12.13
Notes
  • ENDED = the part has been discontinued (no longer available).
