3' E46 323i Rear brake pipe DSC

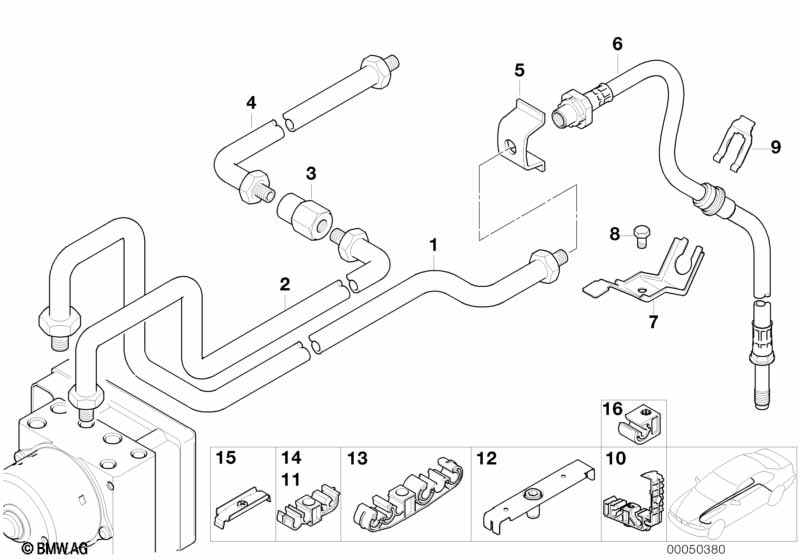

Rear brake pipe DSC
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M10/M12-3732MM 1 09/2000 34326754884
02 Pipe M10/M10-3857MM 1 09/2000 34326754886
03 Intermediate piece M10X1 1 09/2000 34326757282 $4.08
04 Pipe M10/M10-1175MM 1 06/1999 34326755612 $8.65
04 Pipe M10/M10-1206MM 1 06/1999 09/2000 34326766825 $8.05
05 Clip 2 09/2000 34341163565 $0.97
06 Brake hose rear 2 09/2000 34301165174 $39.55
07 Brake pipe bracket 2 09/2000 34301164003 $4.00
08 Hex bolt with washer M6X12-U1-8.8 2 09/2000 07119904517 $0.36
09 Retaining spring f brake hose 2 09/2000 34306771981 $0.52
12 Bracket 2 09/2000 16127195327 $2.12
13 Pipe clip 2 09/2000 16121183772 $1.43
14 Brake pipe bracket X 09/2000 34301164005 $0.68
15 Bracket X 09/2000 34306773697 $0.62
