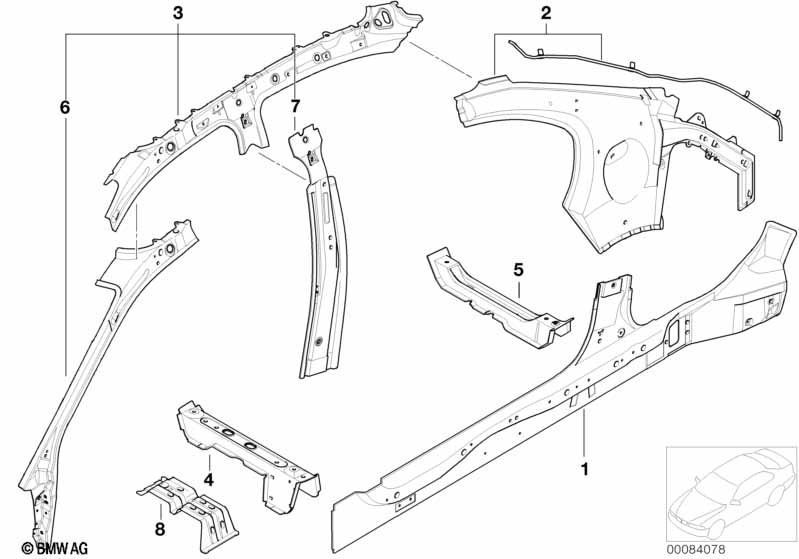

3' E46 325i Single components for body-side frame

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left side member 1 41127039693 $112.49
01 Right side member 1 41127039694 $112.49
FOR VEHICLES WITH AND WITHOUT
SLIDING LIFTING ROOF
02 Reinforcement left 1 41218236613 $352.58
only in conjunction with
02 Reinforcement right 1 41218236614 $352.58
only in conjunction with
-- Outlet hose L=2M 1 54108261716 $28.16
additionally required parts:
MOULDED PART
03 Left interior side frame 1 41218236615 $462.36
only in conjunction with
03 Right interior side frame 1 41218236616 $462.36
only in conjunction with
-- Outlet hose L=2M 1 54108261716 $28.16
-- Flange nut M10 2 41218227672 $1.96
04 Left front seat console 1 41118239493 $43.41
04 Right front seat console 1 41118239494 $43.41 ENDED
05 Left rear seat console 1 41118233493 $43.41 ENDED
05 Right rear seat console 1 41118233494 $43.41 ENDED
06 Left front side frame 1 41218253751 $163.14
only in conjunction with
06 Right front side frame 1 41218253752 $170.86
only in conjunction with
-- Flange nut M10 2 41218227672 $1.96
07 Interior left column B 1 41218253749 $139.58
07 Column B inside right 1 41218253750 $139.58
08 Covering plate left 1 41117037745 $17.35 ENDED
08 Covering plate right 1 41117037746 $17.35 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
