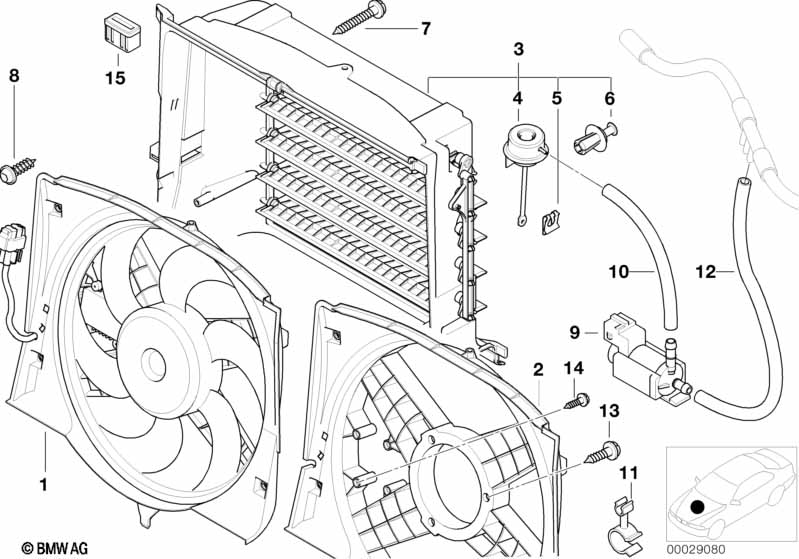

3' E46 320d Fan housing, mounting parts

Fan housing, mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Manual Transmission

=Yes
01 Fan housing with fan 1 17117801423 $477.38
02 Fan shroud 1 17117790897 $85.10 +core
03 Venetian blind 1 17117786682
04 Vacumm box 1 17327785060
05 Clamp A5 1 07129934906 $0.53
06 Expanding rivet 1 17111712963 $0.27
07 Screw self-tapping D6X40 ZNS3 1 17117536972 $1.12
08 Screw self-tapping D6X20 ZNS3 5 17117536971 $1.12
09 Electr.valve 1 11747810831 $46.70
10 Vacuum hose white 3,5X2,0 X 11658507249
11 Clip retainer 1 09/2001 61138368029 $0.43
12 Vacuum hose white 3,5X2,0 X 09/2001 11658507249
13 Fillister-head screw M5X16 3 17427612897
14 Screw K40X18 4 64548377799
15 Rubber Mounting 2 64118391475 $1.03
Notes
  • +core = plus core charge (possibility of a return of the old part)
