3' E46 320d Cooling System Water Hoses

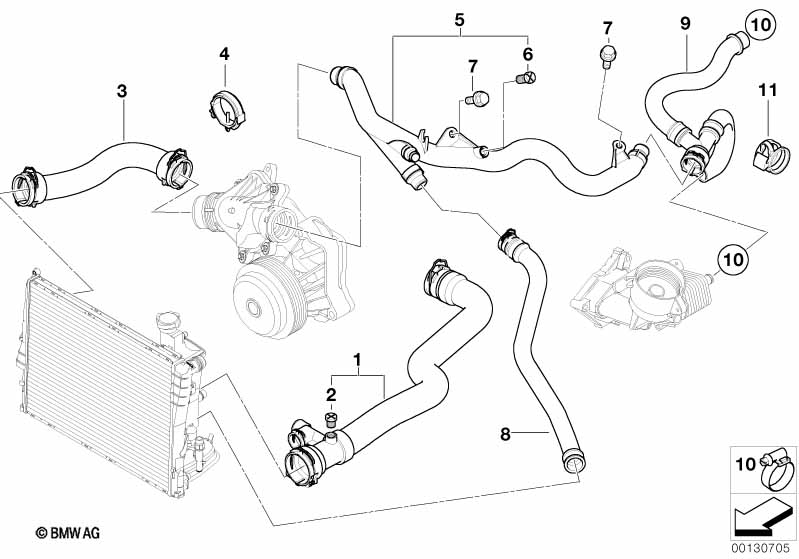

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Heater water hose
see main section 64
For vehicles with
EU4 exhaust emissions standard
and
Automatic transmission

S167A=No

S205A=No
01 Water hose 1 11532249778
02 Vent screw M10 1 11537793373 $5.79
03 Water hose 1 11532249779
04 Hose clamp 1 11531714433 $2.39
05 Return pipe 1 11537802630
06 Vent screw M10 1 11537793373 $5.79
07 Collar screw M6X18-ZNS3 2 11537804636 $0.60
08 Water hose 1 11532249780
09 Water hose 1 11537787405 +core
10 Hose clamp L16-30 2 64218367179 $1.07
11 Hose clamp 1 64216900585 $1.13
Notes
  • +core = plus core charge (possibility of a return of the old part)
