3' E46 320d Intake manifold-supercharg.air duct

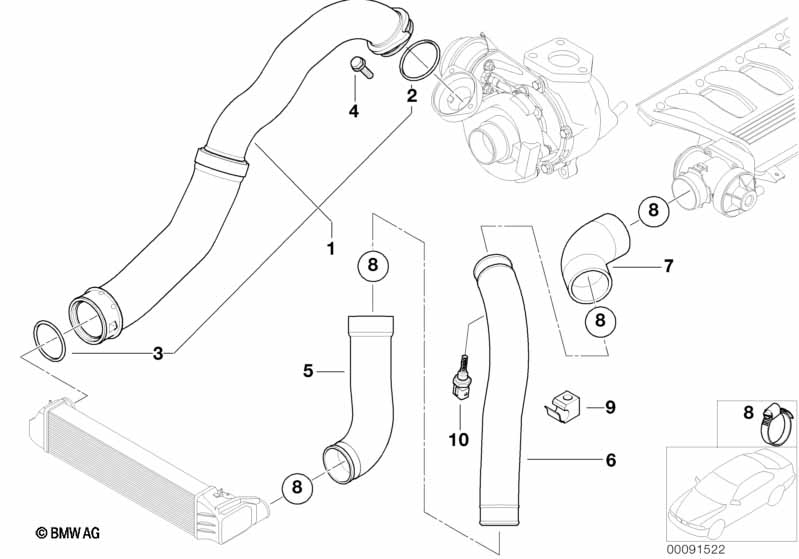

Intake manifold-supercharg.air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 03/2003 11617786865
02 Preformed seal 1 03/2003 11617801206
03 Preformed seal 1 03/2003 11617788415
04 Hex bolt with washer M6X18-U1 1 03/2003 07119905399 $0.36
04 Fillister-head screw M6X16 1 03/2003 11617788358
05 Pressure hose assy 1 03/2003 11617799394
06 Charge air tube 1 03/2003 11617788307
07 Pressure hose assy 1 03/2003 11617799393
08 Hose clamp D= 59-68MM 4 03/2003 11617786527 $5.07
09 Cable holder 1 03/2003 11617788406 $0.82
10 Intake air temperature sensor 1 03/2003 11613449116 $32.95
