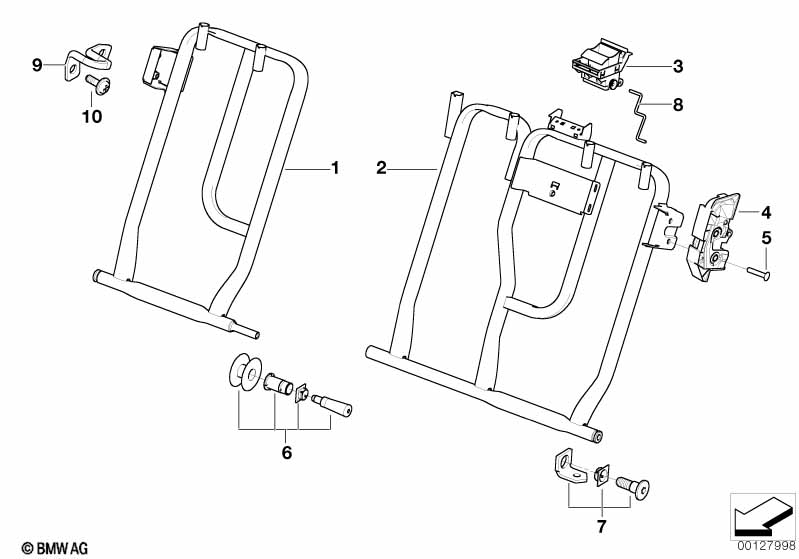

3' E46 320td Seat, rear, seat frame, load-through

Seat, rear, seat frame, load-through
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Frame, backrest right 1 52207027580 +core
02 Frame, backrest left 1 52207027574 +core
03 Unlocking unit SCHWARZ 1 52207046451 $11.80
04 Catch rear left 1 52208267019 $40.76
04 Catch rear right 1 52208267020 $40.76
05 Screw 4 52208267018 $0.63
06 Fastening set 1 52207046452 $17.73
07 Fastening set 2 52207046453 $11.80
08 Operating rod 2 52207027567
09 Support LINKS 1 52208231745 $9.47
09 Support RECHTS 1 52208231746 $9.47
10 Fillister head screw 1 10/1999 52208252438 $0.45 ENDED
10 Fillister head screw 1 10/1999 52207025304 $0.45 ENDED
10 Fillister head screw M8X24 T40 1 12/2004 52206961563 $0.80 ENDED
10 Fillister head screw M8X20 T40 1 52209145356 $0.50 ENDED
10 Torx screw with collar M8X20 T30 1 07147124309 $0.80
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
