3' E46 320td GS5-39DZ grbx housing and mount. parts

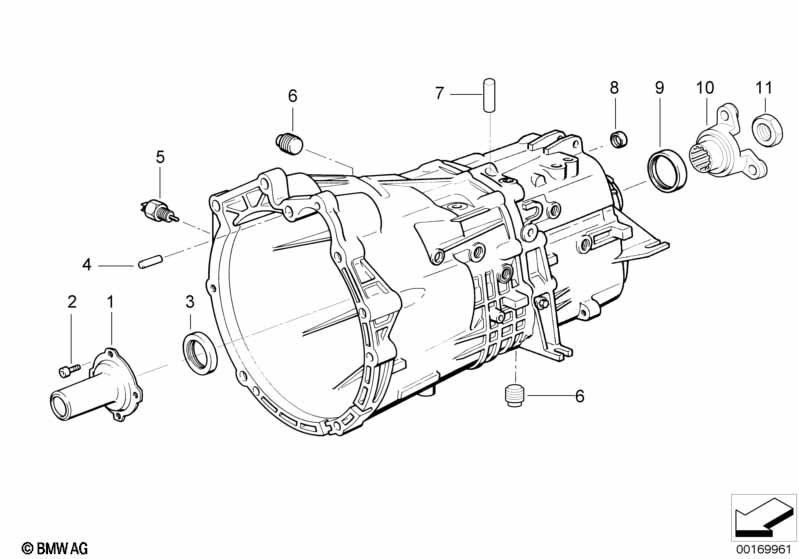

GS5-39DZ grbx housing and mount. parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Transmission parts for complete-repair
only
on request. For this repair, there is no
repair-instruction or special-tool. The
repair should only be made by qualified
personal, at best by BMW partner
organization. BMW does not assume
liability and damages caused through
improper repair.
01 Guide tube 1 09/2001 03/2003 23117501714
02 Torx screw M6X12 4 09/2001 03/2003 23117531355 $1.80
03 Shaft seal 70X39,85X9 1 09/2001 03/2003 23127501712 $15.29
04 Dowel pin 8M6X24 1 09/2001 03/2003 24411218031 $2.38
05 Backup light switch M12X1.5 1 09/2001 03/2003 23147524811 $11.00
06 Screw plug M24X1,5 2 09/2001 03/2003 27111226798 $5.61
07 Vent pipe 1 09/2001 03/2003 23117501758
08 Shaft seal 15X21X5 1 09/2001 03/2003 23121282394 $10.02 ENDED
08 Shaft seal 15X21X5 1 09/2001 03/2003 23121222677 ENDED
08 Shaft seal 15X21X5 1 09/2001 03/2003 23128677736
09 Shaft seal 62X50X9 1 09/2001 03/2003 23121282458 $15.29
10 Output flange 1 09/2001 03/2003 23217521573
11 Collar nut 1 09/2001 03/2003 23211282521
Notes
  • ENDED = the part has been discontinued (no longer available).
