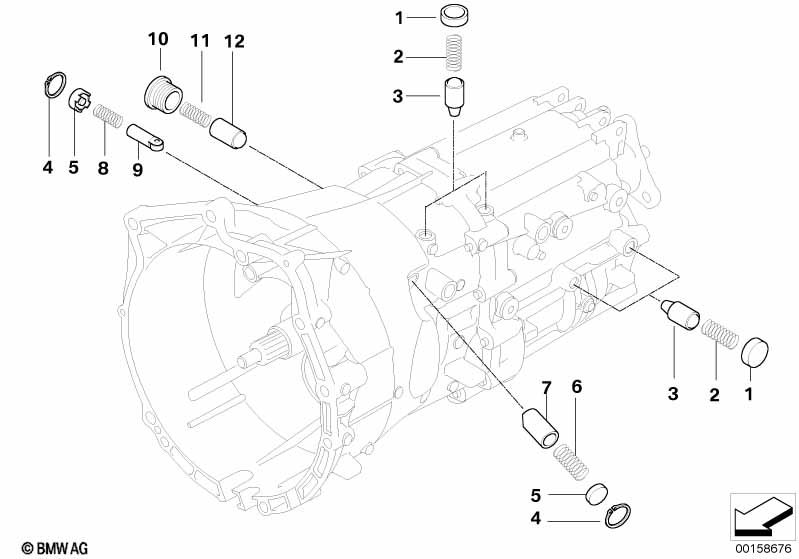

3' E46 320td GS6-37BZ/DZ Gear shift components
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | 4 | 03/2003 | 23317637524 | |||||
| 02 | Compression spring | 4 | 03/2003 | 23311222989 | $1.12 | ||||
| 03 | Locking pin | 4 | 03/2003 | 23317543221 | $5.69 | ||||
| 04 | Lock Ring | 20X1 | 2 | 03/2003 | 23317531374 | $1.43 | |||
| 05 | Cover lid | 2 | 03/2003 | 23311224825 | $5.42 | ||||
| 06 | Compression spring | 1 | 03/2003 | 25117550445 | $1.43 | ||||
| 07 | Locking pin | 1 | 03/2003 | 23317539774 | $7.28 | ||||
| 08 | Compression spring | 1 | 03/2003 | 23317550446 | $2.40 | ||||
| 09 | Locking pin | 1 | 03/2003 | 23311224823 | $27.61 | ||||
| 10 | Screw plug, inner hexagon | M30X1,5 / SW17 | 1 | 03/2003 | 23317537927 | ||||
| 11 | Compression spring | 1 | 03/2003 | 23117550453 | $3.62 | ||||
| 12 | Locking pin | 1 | 23317600618 | ||||||
| 12 | Locking pin | 1 | 03/2003 | 23317600618 |
