3' E46 318td Front door-hinge/door brake

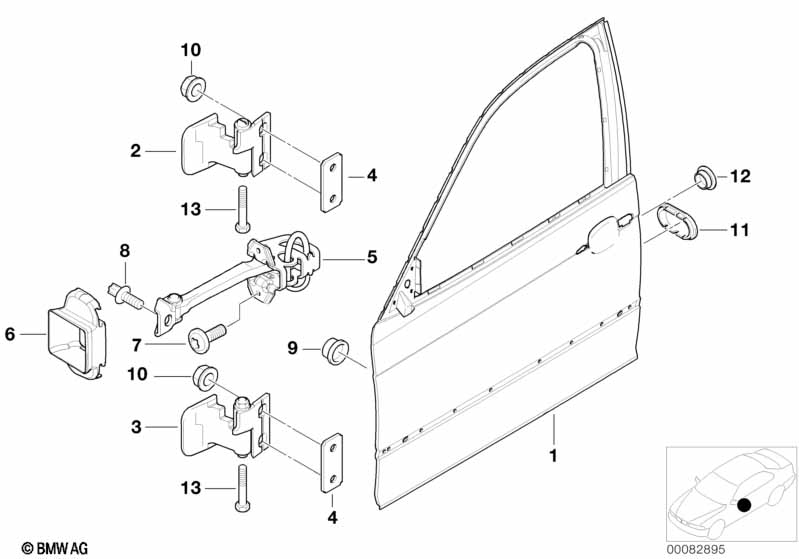

Front door-hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door front left 1 41517016239 $543.60
01 Door front right 1 41517016240 $543.60
02 Left upper front door hinge 1 41518240079 $29.79
02 Right upper front door hinge 1 41518240080 $29.79
03 Left lower front door hinge 1 41518240081 $29.79
03 Right lower front door hinge 1 41518240082 $29.79
04 Shim 1,0MM X 41517202047 $3.02
04 Shim 0,5MM X 41518173321 $3.02
05 Door brake 2 51218265545 $37.39
06 Door brake gasket 2 51218265547 $1.73
07 Torx-bolt with washer ISA M6X10 4 07147184168 $0.62
08 Torx-bolt with washer ASA M8X22 2 07147248303 $0.60
09 Protection cap SCHWARZ 2 51218177670 $0.33
10 Hex nut with plate M8 8 07146970706 $1.18
12 Plug D=8MM 2 51218235768 $0.39
13 Hex bolt M6X22-8.8-MK 4 07119906263 $0.36
