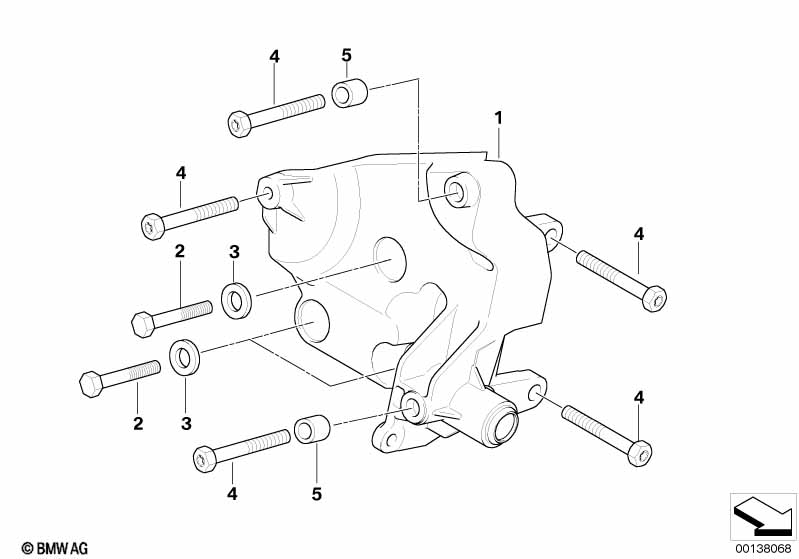

3' E46 318td Climate compressor supporting bracket

Climate compressor supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Climate compressor supporting bracket 1 09/2001 09/2004 64557787319
01 Climate compressor supporting bracket 1 09/2004 64557794614
02 Hex bolt with washer M8X55-U1 3 09/2001 07119905391 $1.27
03 Washer A8,4-ZNS 3 09/2001 01/2007 07119931019 $0.40
03 Washer S8 ZNS3 3 09/2001 05/2006 07119903078 $0.35 ENDED
03 Washer 8,4X16X1,6-ZNNV 3 09/2001 07119907030
04 Hex bolt with washer M8X25-8.8-ZNNIV 5 09/2001 07119905394 $0.64
05 Dowel D=11,1MM 2 09/2001 11121726245 $1.62
Notes
  • ENDED = the part has been discontinued (no longer available).
